Quick Code: BB-530922

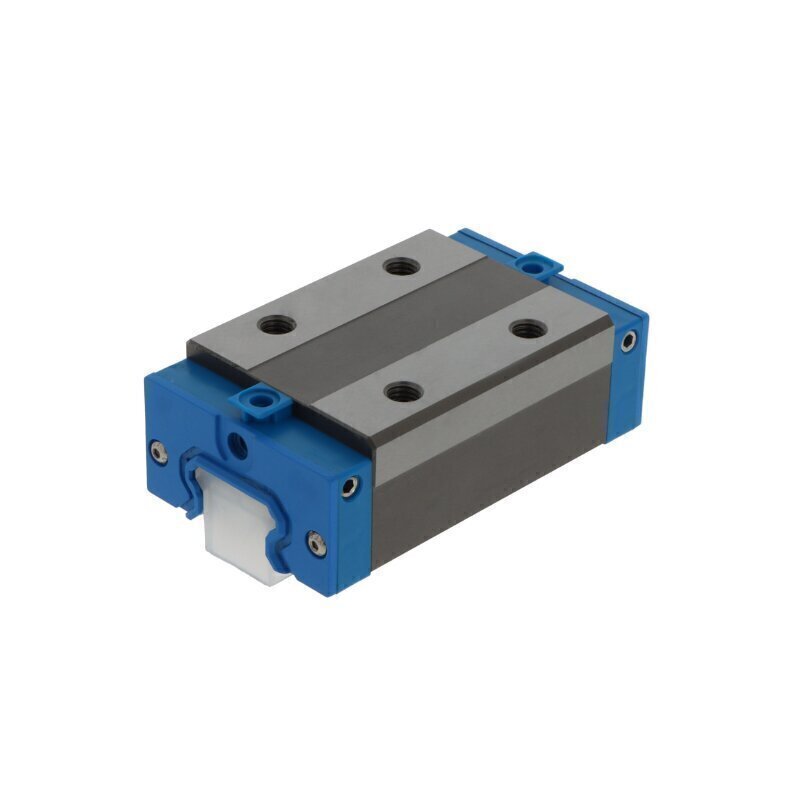

LGBCS45 BLSSNZ1-N SNR Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
With ball chain
Ball-/Roller rows
Double Row
Brand
SNR
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
45 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Low and long design
Reference
LGBCS45BLSSNZ1N
Additional Reference:
10188731
Quick Order Code
BB-530922
Product Description
The LGBCS45 BLSSNZ1-N is a high-quality linear carriage manufactured by SNR, designed for precise linear motion applications. This block-style carriage from the 45 series features a low and long configuration, providing excellent support and stability for demanding industrial applications requiring larger load capacities.
Constructed with durable steel and plastic materials, this carriage utilizes ball-type rolling elements with a ball chain system arranged in a double row configuration for enhanced load distribution, smooth operation, and consistent motion. The light preload setting ensures optimal performance with minimal friction during movement.
Key Features:
- Design: Block carriage - Low and long design
- Series: 45 series
- Rolling Elements: Balls with ball chain for smooth, consistent motion
- Configuration: Double row arrangement for superior load capacity
- Preload: Light preload
- Tolerance Class: Normal Class
- Materials: Steel and Plastic construction
- Operating Temperature: -10°C to +100°C
Sealing & Maintenance:
- Comprehensive sealing system including end seals, sealing strips, and inner seals for excellent contamination protection
- Can be relubricated via the lubrication nipple for extended service life
- Ball chain design ensures smooth ball recirculation and reduced noise
Typical Applications:
- CNC machinery and machine tools
- Heavy-duty industrial automation systems
- Packaging equipment
- Material handling systems
- Precision positioning equipment
- Large-scale manufacturing equipment
Reference: LGBCS45BLSSNZ1N
Brand: SNR
