Quick Code: BB-530900

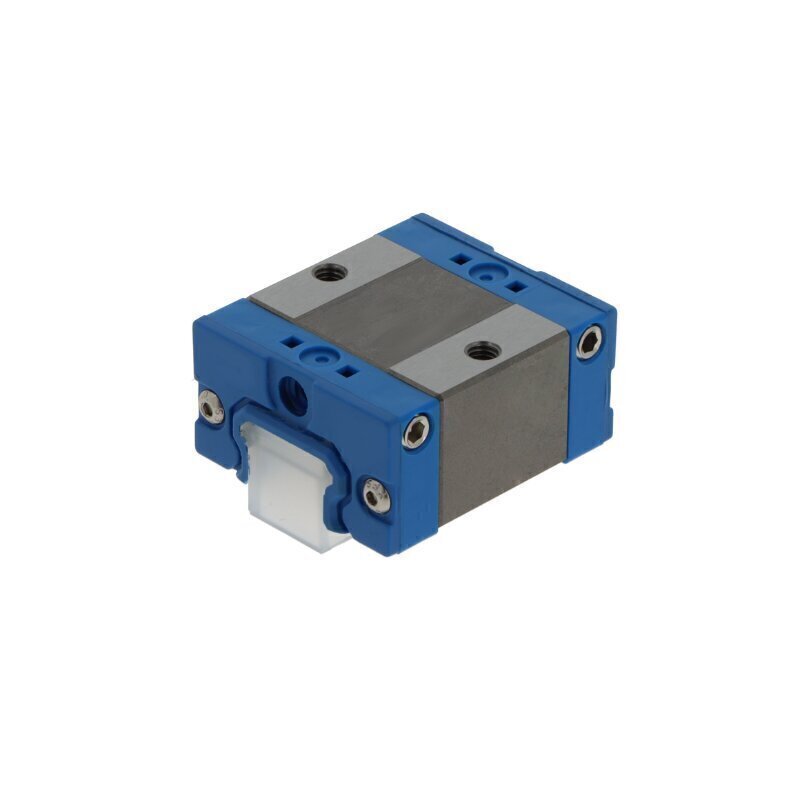

LGBCS15 BSSSNZ1-N SNR Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
With ball chain
Ball-/Roller rows
Double Row
Brand
SNR
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
15 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Low and short design
Reference
LGBCS15BSSSNZ1N
Additional Reference:
10188683
Quick Order Code
BB-530900
Product Description
The LGBCS15 BSSSNZ1-N is a high-quality linear carriage manufactured by SNR, designed for precise linear motion applications. This block-style carriage from the 15 series features a low and short design, making it ideal for applications where space constraints are a consideration.
Built with a combination of steel and plastic materials, this carriage utilizes ball-type rolling elements arranged in a double row configuration for enhanced load capacity and stability. The light preload ensures smooth operation while maintaining accuracy in positioning applications.
Key Features:
- Design: Block carriage with low and short profile
- Series: 15 series
- Rolling Elements: Balls arranged in double row configuration
- Ball Chain: Equipped with ball chain for reliable ball circulation
- Preload: Light preload for smooth operation
- Sealing: Comprehensive sealing system including end seals, sealing strips, and inner seals for protection against contaminants
- Lubrication: Can be relubricated via the lubrication nipple for extended service life
- Tolerance Class: Normal class
- Operating Temperature: -10°C to +100°C
- Material: Steel and Plastic construction
Typical Applications:
- Automated machinery and equipment
- CNC machines and machine tools
- Packaging equipment
- Material handling systems
- Assembly line automation
- Precision positioning systems
Reference: LGBCS15BSSSNZ1N
Brand: SNR
