Quick Code: BB-530913

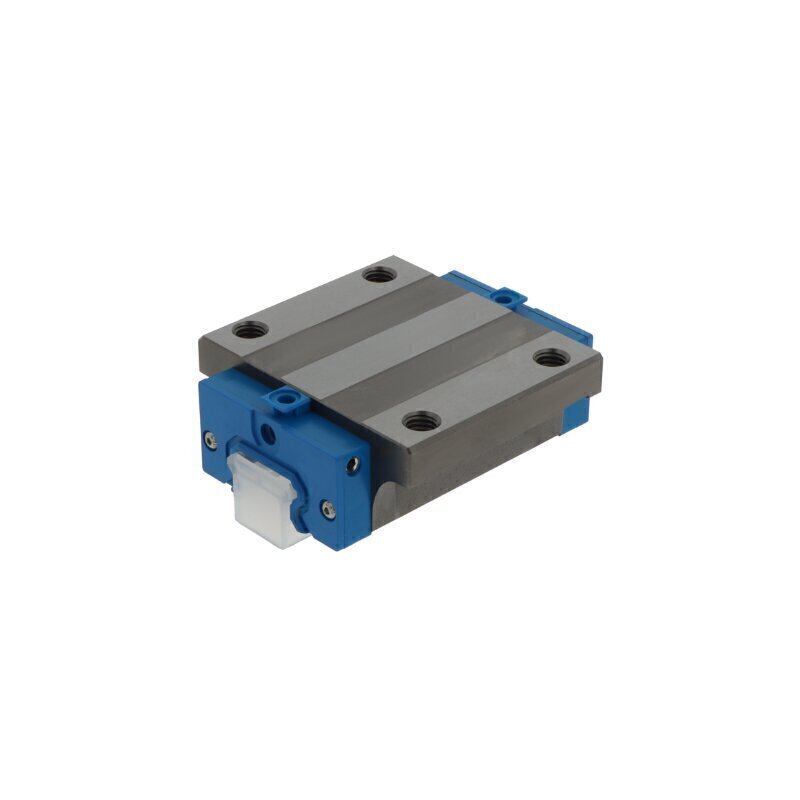

LGBCH30 FLSSNZ1-N SNR Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
With ball chain
Ball-/Roller rows
Double Row
Brand
SNR
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
30 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Long design
Reference
LGBCH30FLSSNZ1N
Additional Reference:
10188714
Quick Order Code
BB-530913
Product Description
The LGBCH30 FLSSNZ1-N SNR Carriage is a precision-engineered linear bearing component designed for smooth, reliable linear motion in a wide range of industrial applications. This flange-style carriage from SNR combines robust construction with high-performance features, making it ideal for automation systems, CNC machinery, packaging equipment, and material handling systems.
Constructed from durable steel and plastic materials, this carriage features a long design configuration with ball-type rolling elements arranged in a double row formation for enhanced load distribution and stability. The integrated ball chain ensures optimal ball circulation and quiet operation.
Key Features:
- Design: Flange carriage with long design configuration
- Series: 30 series
- Rolling Elements: Balls in double row arrangement
- Ball Chain: Equipped with ball chain for smooth operation
- Preload: Light preload for optimal performance
- Tolerance Class: Normal class precision
- Sealing: Comprehensive protection with end seals, sealing strips, and inner seals
- Lubrication: Can be relubricated via the lubrication nipple for extended service life
- Materials: Steel and plastic construction
- Operating Temperature: -10°C to +100°C
Ideal Applications:
- Industrial automation equipment
- CNC machines and machining centers
- Packaging and assembly lines
- Material handling and conveying systems
- Robotics and pick-and-place systems
Reference: LGBCH30FLSSNZ1N
Brand: SNR
