Quick Code: BB-530903

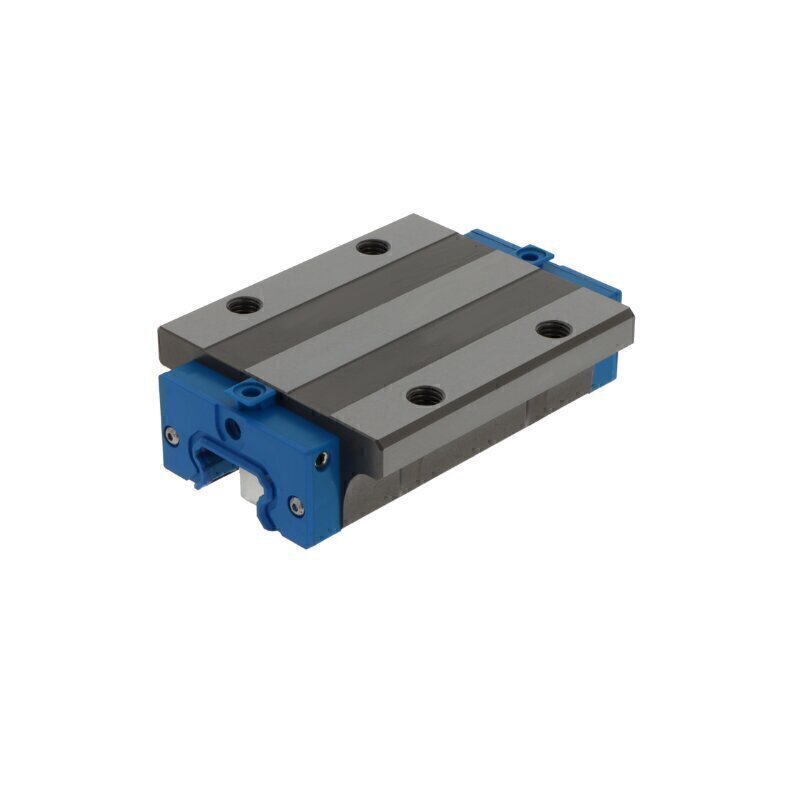

LGBCH20 FESSNZ1-N SNR Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
INA Carriages
Buy Now
Product Specification
Ball chain
With ball chain
Ball-/Roller rows
Double Row
Brand
SNR
Design
Flange carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals, Sealing Strips and Inner Seals
Series
20 series
Temperature range
-10 to +100 °C
Tolerance class
Normal Class
Type of rolling elements
Balls
Version
Extra long type
Reference
LGBCH20FESSNZ1N
Additional Reference:
10188689
Quick Order Code
BB-530903
Product Description
The LGBCH20 FESSNZ1-N SNR Carriage is a high-quality linear motion component designed for precise and smooth movement in various industrial applications. This flange-type carriage from SNR features an extra-long design, making it ideal for applications requiring extended travel lengths and enhanced load distribution.
Built with a combination of steel and plastic materials, this carriage offers excellent durability while maintaining optimal performance. The double-row ball configuration ensures superior load-carrying capacity and stability during operation.
Key Features:
- Design: Flange carriage with extra-long type configuration
- Series: 20 series
- Rolling Elements: Balls arranged in double rows
- Ball Chain: Equipped with ball chain for smooth recirculation
- Preload: Light preload for reduced friction and smooth operation
- Sealing: Comprehensive sealing system including end seals, sealing strips, and inner seals for contamination protection
- Lubrication: Can be relubricated via the lubrication nipple for extended service life
- Tolerance Class: Normal class precision
- Operating Temperature: -10°C to +100°C
- Material: Steel and Plastic construction
Typical Applications:
- CNC machinery and machine tools
- Automated assembly systems
- Packaging equipment
- Material handling systems
- Precision positioning applications
Reference: LGBCH20FESSNZ1N
Brand: SNR
