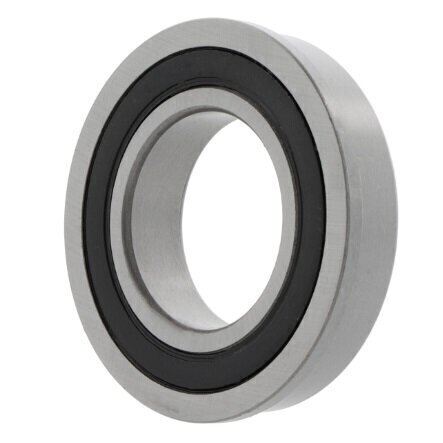

6214-2RS1/HC5C3WT SKF Sealed Deep Groove Ball Bearing 70mm x 125mm x 24mm
Help Articles
Also Try
N NJ NUP Type Cylindrical Roller Bearings
HK Series Drawn Cup Needle Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
SKF
Cage
Sheet steel cage
Clearance
Slightly increased radial clearance
Greasing
High temperature grease
Inside Dia
70mm
Material
Standard bearing steel
Material of rolling elements
Si3N4, silicon nitride (ceramics)
Outside Dia
125mm
Sealing
Sealed
Width
24mm
Reference
6214-2RS1/HC5C3WT
Additional Reference:
10160918
Quick Order Code
BB-527151
Product Description
The 6214-2RS1/HC5C3WT is a high-performance SKF Deep Groove Ball Bearing featuring advanced ceramic rolling elements and exceptional temperature resilience. Designed for demanding industrial applications, this bearing offers superior performance across a wide range of challenging environments.
Key Features:
- Innovative silicon nitride (Si3N4) ceramic rolling elements
- Extreme temperature performance: -40 to 160 degrees Celsius
- High-temperature specialized grease filling
- Single row deep groove ball bearing design
- Sealed configuration for enhanced protection
Technical Specifications:
- Inside Diameter: 70mm
- Outside Diameter: 125mm
- Width: 24mm
- Bore Type: Cylindrical
- Cage Material: Sheet steel
- Clearance: Slightly increased radial clearance
- Tolerance Class: P0/PN2 / ABEC 1
- Operating Temperature Range: +70 to +120°C
Unique Advantages:
- Ceramic rolling elements provide superior hardness and thermal stability
- Reduced friction and enhanced performance compared to traditional steel bearings
- Excellent resistance to wear and corrosion
- Sealed design prevents contamination and lubricant loss
Recommended Applications:
- High-temperature industrial machinery
- Precision engineering equipment
- Aerospace and advanced manufacturing systems
- Automotive components requiring extreme performance
- Robotics and high-speed mechanical systems
With its advanced ceramic technology and robust design, the 6214-2RS1/HC5C3WT represents the pinnacle of SKF's engineering excellence, offering unparalleled reliability and performance in the most demanding operational conditions.
