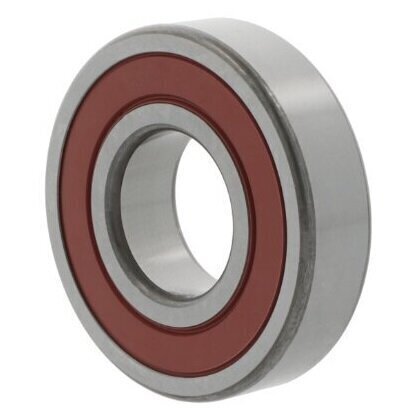

6201-RSH SKF Deep Groove Ball Bearing with Seal on One Side Only 12mm x 32mm x 10mm
Help Articles
Also Try
N NJ NUP Type Cylindrical Roller
HK Series Drawn Cup Needle Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
SKF High Temperature
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
SKF
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
12mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
32mm
Sealing
Sealed on One Side Only
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
10mm
Reference
6201-RSH
Additional Reference:
10070565
Quick Order Code
BB-502910
Product Description
The 6201-RSH SKF Deep Groove Ball Bearing is a precision-engineered single row ball bearing designed for versatile industrial and mechanical applications. This high-performance bearing combines robust design with practical protection and reliability.
Technical Specifications:
- Reference: 6201-RSH
- Brand: SKF
- Inside Diameter: 12mm
- Outside Diameter: 32mm
- Width: 10mm
- Bearing Rows: Single row
- Bore Type: Cylindrical bore
- Cage Material: Sheet steel
- Radial Clearance: Normal
- Material: Standard bearing steel
- Sealing: Sealed on one side only
- Temperature Range: -20°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
Key Features:
- One-sided sealing provides partial protection against contaminants
- Suitable for applications requiring moderate environmental protection
- Manufactured by SKF, a global leader in bearing technology
- Constructed from standard bearing steel for durability
- Designed for consistent performance in various industrial settings
Potential Applications:
- Electric motors
- Automotive components
- Small machinery and equipment
- Conveyor systems
- Light industrial machinery
- Agricultural equipment
The unique one-sided sealing design offers a balance between protection and accessibility, making this bearing ideal for applications where partial contamination protection is required while maintaining ease of maintenance and lubrication.
