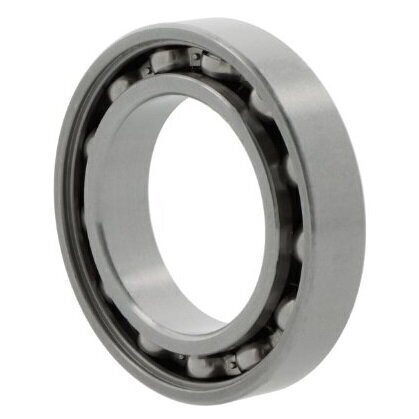

313-Z SKF Deep Groove Ball Bearing with Shield on One Side Only 65mm x 140mm x 33mm
Help Articles
Also Try
N NJ NUP Type Cylindrical Roller
HK Series Drawn Cup Needle Bearings
Metric Oil Seals
Miniature Bearings
FAG Ball Bearings
Imperial Plain Oilite Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
SKF
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
65mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer ring
Without flange/groove
Outside Dia
140mm
Sealing
Shielded on One Side Only
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
33mm
Reference
313-Z
Additional Reference:
10120259
Quick Order Code
BB-514621
Product Description
The 313-Z SKF Deep Groove Ball Bearing is a high-performance, precision-engineered bearing designed for demanding industrial and mechanical applications. Manufactured by SKF, the world's leading bearing manufacturer, this single row deep groove ball bearing offers exceptional reliability and functionality.
Key Features:
- Manufactured by SKF - global leader in bearing technology
- Single row deep groove ball race design
- Single-sided shielded configuration
- Sheet steel cage for durability
- Cylindrical bore with standard normal radial clearance
- Constructed from standard bearing steel
- Without flange/groove on outer ring
Technical Specifications:
- Inside Diameter: 65mm
- Outside Diameter: 140mm
- Width: 33mm
- Operating Temperature Range: -20°C to +120°C
- Tolerance Class: P0/PN2 / ABEC 1
- Sealing: Shield on One Side Only
- Current Insulation: No
- Material: Standard bearing steel
- Rolling Elements Material: Standard bearing steel
Typical Applications:
- Electric motors
- Automotive systems
- Industrial machinery
- Conveyor systems
- Pumps and compressors
- Heavy-duty industrial equipment
- Power transmission systems
Benefits:
- Robust design for reliable performance
- Partial shielding provides moderate protection against contaminants
- Suitable for a wide range of industrial applications
- High-quality SKF engineering
- Consistent and dependable rotational performance
- Excellent durability in challenging environments
With its versatile design and SKF's renowned quality, the 313-Z ball bearing is an excellent solution for precision mechanical applications requiring reliable and efficient rotational capabilities in large-scale industrial settings. The combination of its substantial size, single-sided shielding, and high-quality construction makes it ideal for heavy-duty applications demanding superior performance and longevity.
