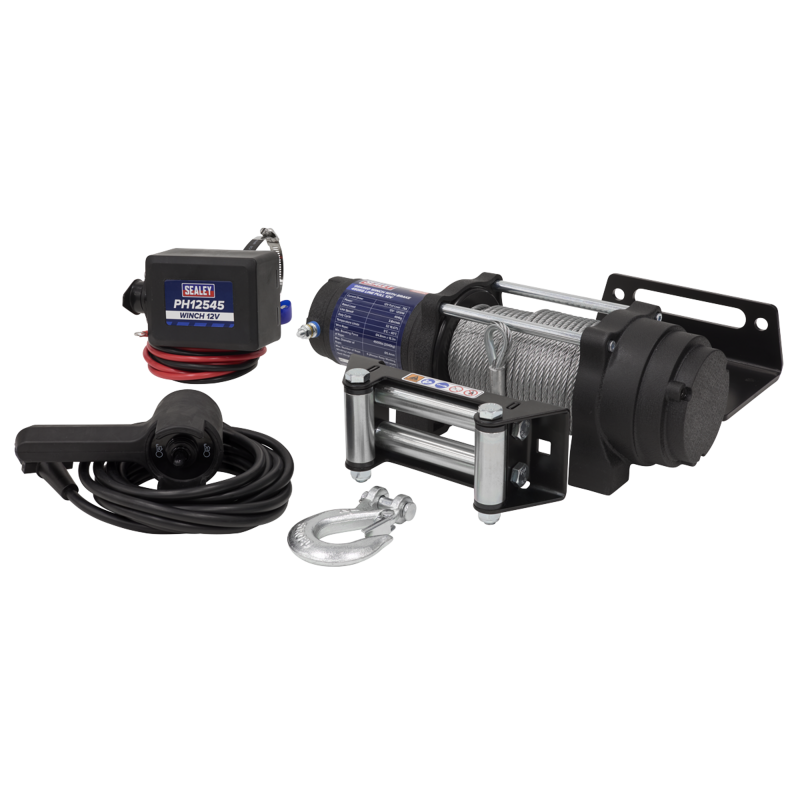

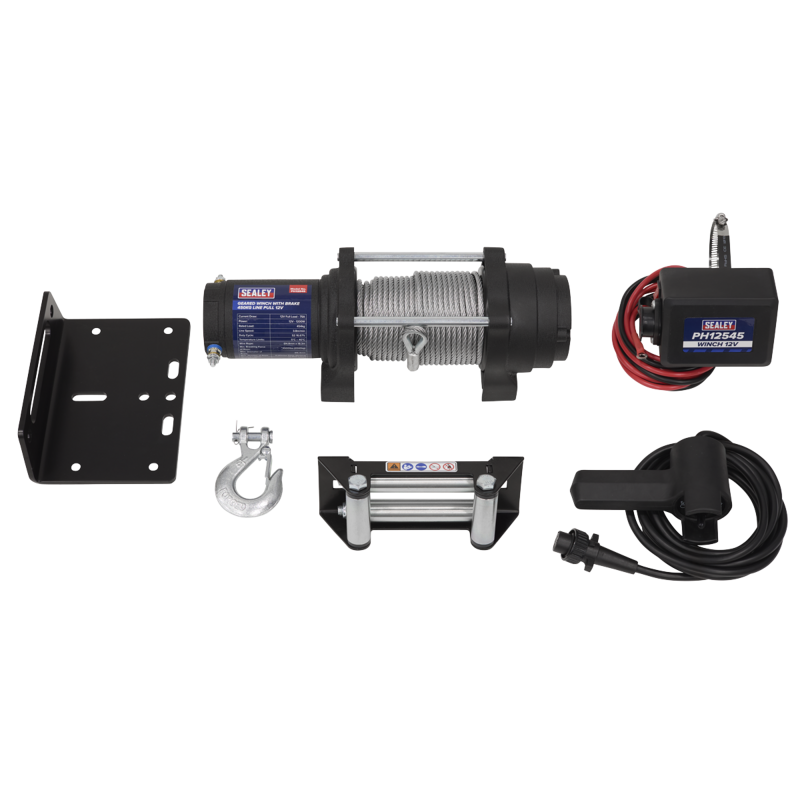

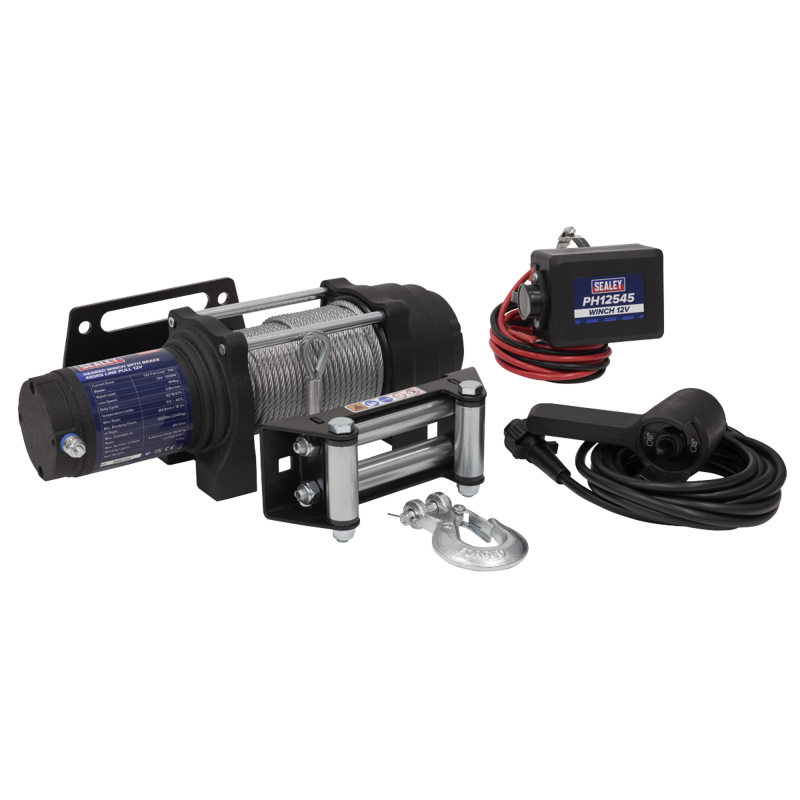

Sealey PH12545 Geared Winch with Brake 450kg Line Pull 12V
Also Try
Hand
Buy Now
Product Specification
Brand
Sealey
Current Draw
12V Full Load - 75A
Gear Ratio
140:1
Line Pull*
454kg 1000lbs
Line Speed*
Full Load - 3.8m/min
Max. No. of Rope Winding Layers
4 (Always Keep Working on First Layer)
Max. Rope Diameter
Ø5.4mm
Min. Breaking Rope Force
4500lbs (2040kg)
Model No
PH12545
Motor Power
12V - 1200W
Nett Weight
11kg
Rated Capacity
454kg 1000lbs
Specification
Wire Rope Diameter
Ø4.8mm
Wire Rope Length
18.3m
Reference
PH12545
Quick Order Code
BB-697119
Product Description
REINFORCED - Steel drum is reinforced to make the product strong and durable.WEATHERPROOF - Rated IP68 this winch will withstand any weather conditions.
3-STAGE PLANETARY GEARS - Increased pull generated by the gear train.
2-BRAKE SYSTEM - Mechanical cone brake and a permanent motor dynamic brake work together to keep the load stable and protect the user.
WIRE LENGTH - 18m.
MOTOR - Permanent magnet motor 12V - 1.6HP/1.2KW.
MAXIMUM WEIGHT - 450kg(1000lbs).
