MP95 RHP 95mm Pillow Block Bearing
Also Try
RHP SF 4 Bolt Flanged
RHP SFT 2 Bolt Flanged
RHP Short Base Pillow Block
RHP Take Up Units
RHP 4 Bolt Catridge
Buy Now
Qty:
Product Specification
Bolt Hole Centres (J)
301.6/371.5mm
Bore Size (d)
95mm
Brand
RHP
Height (H)
127mm
Housing Width (A)
120.6mm
Total Length (L)
431.8mm
Reference
MP95
Quick Order Code
BB-554431
Product Description
The MP95 RHP 95mm Pillow Block Bearing is a robust, high-performance industrial bearing designed for demanding applications requiring exceptional strength and reliability. This heavy-duty pillow block bearing offers superior load-carrying capabilities and precision engineering for critical mechanical systems.
Key Features:
- Heavy-duty cast iron housing providing maximum rigidity and durability
- Large 95mm bore size for enhanced load-bearing capacity
- Integrated grease nipple for convenient and efficient re-lubrication
- Fully sealed bearing insert protecting against contamination and extending bearing life
- Precision-engineered design for smooth and reliable performance
Technical Specifications:
- Bore Size: 95mm
- Bolt Hole Centres: 301.6/371.5mm
- Housing Height: 127mm
- Housing Width: 120.6mm
- Total Length: 431.8mm
Typical Applications:
- Conveyor systems and material handling equipment
- Industrial pumps
- Electric motor support
- Heavy-duty industrial fans
- Manufacturing production lines
- Mining and aggregate processing equipment
- Construction machinery
The MP95 RHP Pillow Block Bearing excels in high-load and high-impact environments, offering exceptional performance in industrial settings. Its robust construction allows it to withstand significant radial and thrust loads, making it an ideal solution for challenging mechanical applications that require reliable and consistent shaft support.

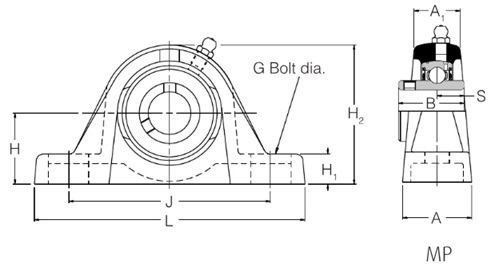

| Shaft Dia | 95mm |
|---|---|
| L | 431.8mm |
| H | 127.0mm |
| H1 | 33.3mm |
| H2 | 254.0mm |
| J Max | 371.5mm |
| J Min | 301.6mm |
| G | 24mm |
| A | 120.6mm |
| A1 | 98.4mm |
| B | 117.48mm |
| s | 49.31mm |
| Dynamic load rating | 157,000 newtons |
| Static load rating | 122,000 newtons |
| Rec max speed | 1600rev/min |
| Mass (approx) | 34.4kg |
