Quick Code: BB-535313

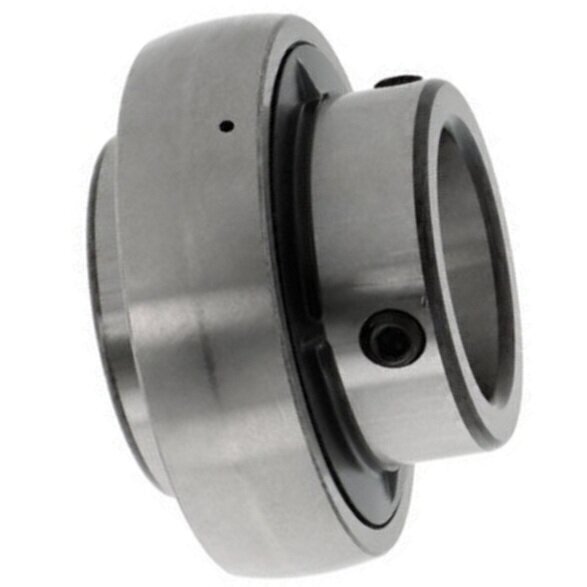

AEL209 D1 RHP Bearing Insert
Also Try
SLFE Pressed Steel 4 Bolt Flanged
Bearing Adaptor Sleeves
Dunlop & Budget Ball Bearings
SKF Ball Bearings
SKF Bearing Inserts
SPZ Belts (9.7mm x 8mm)
Buy Now
Product Specification
Bore
Cylindrical bore
Bore Size (d)
45mm
Brand
RHP
Fixing
Eccentric locking collar
Inner Race Width (B)
30.2mm
Inner ring
Widened inner ring on one side
Material
Standard bearing steel
Outer Ring Profile
Spherical
Outside Dia (D)
85mm
Seal
Contact seals on both sides
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Reference
AEL209D1
Additional Reference:
10246147
Quick Order Code
BB-535313
Product Description
AEL209 D1 RHP Radial insert ball bearing
