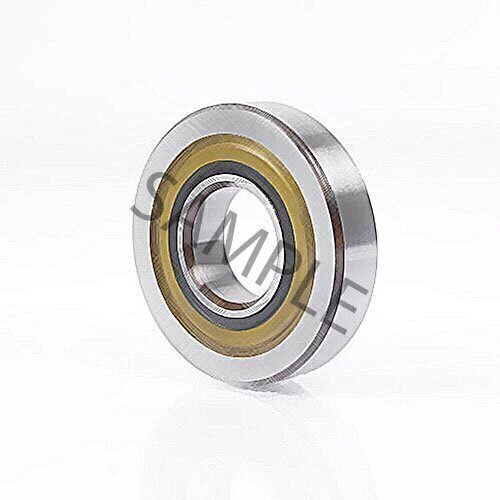

FG1535 SW Nadella Track Roller Bearing
Also Try
INA Track Roller Bearings LR5
INA Track Roller Bearings LFR5
INA Track Rollers Bearings LR6
INA Track Roller Bearings LR2
ZEN Track Roller Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Eccentric ring
Without eccentric ring
Inner dimension
15mm
Material
Standard bearing steel
Outer dimension
35mm
Outer ring
Spherical outside surface
Seal
None, open bearing
Temperature range
-20 to +120 Deg C
Width
19mm
Reference
FG1535SW
Additional Reference:
10203374
Brand
Nadella
Quick Order Code
BB-369057
Product Description
The FG1535 SW Nadella Track Roller Bearing is a precision-engineered single row needle bearing designed for smooth and reliable linear motion guidance in compact mechanical systems. This high-performance bearing offers exceptional dimensional accuracy and consistent performance across various industrial applications.
Technical Specifications:
- Bore Size: 15mm
- Outer Diameter: 35mm
- Width: 19mm
- Material: Standard bearing steel
- Bearing Configuration: Single row, full complement needle bearing
- Outer Ring Design: Spherical outside surface
- Seal Type: Open bearing (no seals)
- Configuration: Without eccentric ring
- Operating Temperature Range: -20°C to +120°C
Key Features:
- Precision single row track roller bearing
- Open design for direct lubrication and easy maintenance
- Suitable for compact linear motion applications
- Robust standard bearing steel construction
Typical Applications:
- Industrial machinery linear guidance systems
- Compact automation equipment
- Material handling mechanisms
- Precision motion control systems
- Small mechanical assemblies requiring smooth rolling motion
Part of the renowned Nadella track roller series, the FG1535 SW offers reliable performance with its precise engineering and versatile design. Its open configuration and standard bearing steel construction make it an ideal solution for applications demanding smooth, low-friction linear motion.
