Quick Code: BB-519290

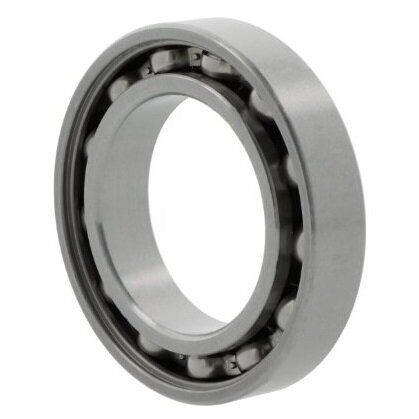

6305 ZC3 NTN Ball Bearing with Shield on One Side Only 25mm x 62mm x 17mm
Also Try
SKF Ball Bearings
Dunlop & Budget Ball Bearings
Thin Section Ball Bearings
Miniature Bearings
FAG Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
NTN
Cage
Sheet steel cage
Clearance
Slightly increased radial clearance
Current insulation
No current insulation
Inner dimension
25mm
Inside Dia
25mm
Material
Standard bearing steel
Material of rolling elements
Standard bearing steel
Outer dimension
62mm
Outer ring
Without flange/groove
Outside Dia
62mm
Seal Type
Cover on one side
Sealing
Shielded on One Side Only
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
17mm
Reference
6305ZC3
Additional Reference:
10149201
Quick Order Code
BB-519290
Product Description
6305 ZC3 NTN Deep Groove Ball Bearing
