Quick Code: BB-518946

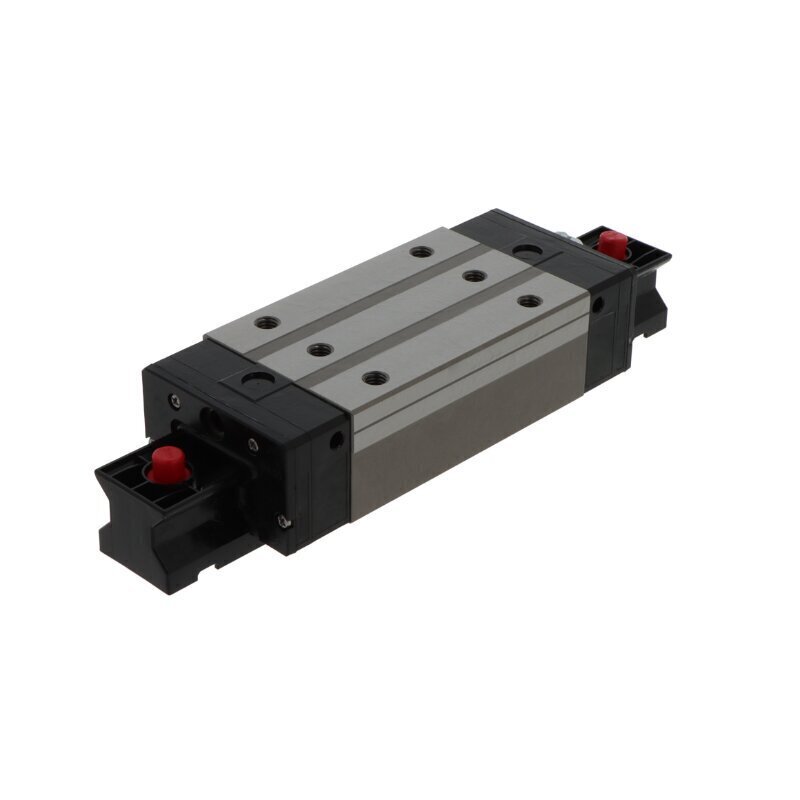

RAA45 BLK6Z NSK Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
INA Carriages
Ewellix Carriages
Grease Gun Flexible Tubes
Hiwin Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
NSK
Design
Block carriage
Lubrication & Maintenance
With lubrication system
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
45 series
Temperature range
-40 to +80 °C
Tolerance class
PN
Type of rolling elements
Rollers
Version
Low and long design
Reference
RAA45BLK6Z
Additional Reference:
10131547
Quick Order Code
BB-518946
Product Description
The RAA45 BLK6Z NSK Carriage is a precision-engineered linear motion component from NSK's 45 series, specifically designed for high-performance industrial applications requiring smooth, accurate linear travel with extended stroke capabilities. This block carriage combines advanced engineering with robust construction to deliver reliable linear guidance in demanding environments.
Key Features:
- Four-Row Roller Configuration: Four rows of precision roller rolling elements provide superior load capacity and exceptional stability for heavy-duty applications
- Block Carriage Design: Compact block-type configuration ideal for space-constrained installations
- Low and Long Design Version: Engineered in a low-profile variant with extended length for applications requiring both height limitations and extended linear travel capabilities
- Roller Type Elements: Roller-based rolling elements deliver enhanced load handling and durability compared to ball-type alternatives
- Integrated Lubrication System: Built-in lubrication system ensures consistent performance with reduced maintenance requirements
- Durable Construction: Steel and plastic materials engineered for long-lasting performance in demanding industrial environments
- Contamination Protection: End seals and sealing strips protect against dust and debris ingress
- Light Preload Specification: Optimized preload for smooth operation and extended service life
- Wide Temperature Range: Operates reliably from -40 to +80°C, suitable for diverse industrial environments
- PN Tolerance Class: Precision engineering meets standard tolerance specifications
- Without Ball Chain: Standard configuration without integrated ball chain system
Ideal Applications:
The RAA45 BLK6Z is perfectly suited for automation systems, CNC machinery, robotics, packaging equipment, industrial material handling systems, and other demanding industrial equipment requiring reliable linear guidance solutions with extended travel ranges and minimal maintenance.
