Quick Code: BB-518942

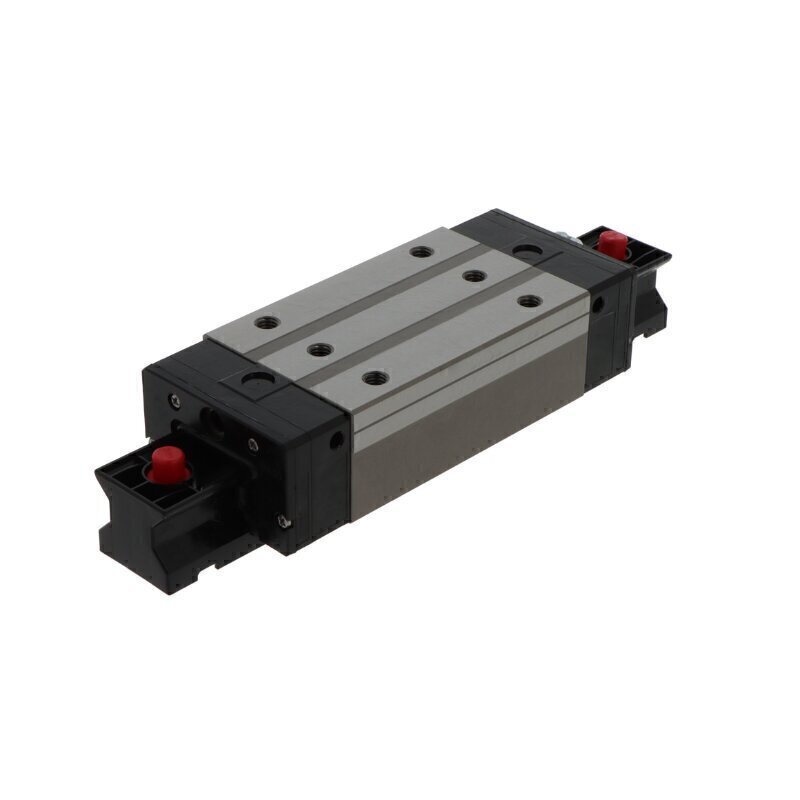

RAA35 BLP6Z NSK Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
INA Carriages
Ewellix Carriages
Single Direction
O-ring Kits
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
NSK
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
35 series
Temperature range
-40 to +80 °C
Tolerance class
P6
Type of rolling elements
Rollers
Version
Low and long design
Reference
RAA35BLP6Z
Additional Reference:
10131536
Quick Order Code
BB-518942
Product Description
The RAA35 BLP6Z NSK Carriage is a precision-engineered linear motion component from NSK's 35 series, designed to deliver reliable performance in demanding industrial applications. This block carriage combines advanced engineering with robust construction to provide smooth, accurate linear travel for high-performance machinery requiring specialized motion guidance.
Key Features:
- Four-Row Roller Configuration: Superior load capacity and stability with four rows of precision roller rolling elements for enhanced durability
- Block Carriage Design: Compact, versatile design suitable for various mounting configurations
- Low and Long Design Version: Extended travel capabilities with optimized height profile for space-constrained installations
- Roller Type Rolling Elements: Roller-based design provides excellent load distribution and smooth operation
- Durable Construction: Steel and plastic materials engineered for long-lasting reliability and corrosion resistance
- Light Preload Specification: Optimized for smooth operation with minimal friction and reduced power consumption
- Relubrication Capability: Can be relubricated via lubrication nipple for extended service life and reduced maintenance downtime
- Comprehensive Sealing: End seals and sealing strips protect against contamination and extend component lifespan
- Wide Operating Temperature Range: Effective performance from -40 to +80°C
- P6 Tolerance Class: Precision engineering for demanding applications requiring tight tolerances and enhanced accuracy
- Without Ball Chain: Streamlined design for simplified integration and reduced complexity
Applications:
The RAA35 BLP6Z is ideal for:
- Automation systems and assembly lines
- CNC machinery and machining centers
- Industrial robotics and robotic arms
- Material handling and conveyor equipment
- Precision manufacturing machinery
- Space-constrained installations requiring low-profile components
- Other demanding industrial equipment requiring reliable linear guidance solutions
Reference: RAA35BLP6Z | Brand: NSK
