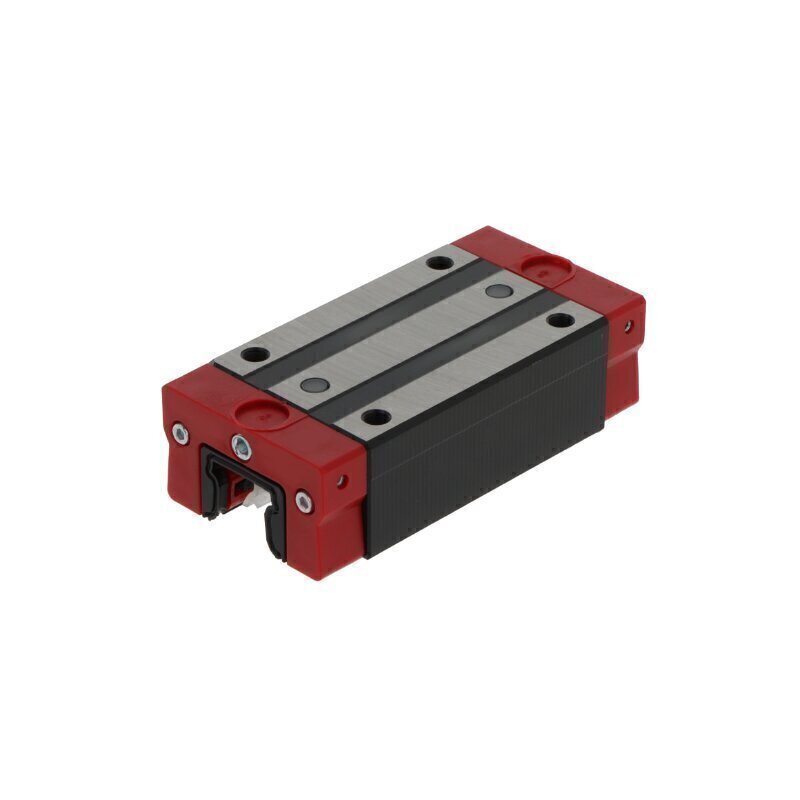

NAH65 BNZ NSK Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
NSK
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
65 series
Temperature range
-40 to +80 °C
Tolerance class
PN
Type of rolling elements
Balls
Version
High and long design
Reference
NAH65BNZ
Additional Reference:
10129280
Quick Order Code
BB-518156
Product Description
The NAH65 BNZ NSK Carriage is a precision-engineered linear motion component from NSK's 65 series, designed to deliver exceptional performance in demanding industrial applications. This block carriage combines advanced engineering with robust construction to provide smooth, accurate linear travel for high-performance machinery.
Key Features:
- Four-Row Ball Configuration: Superior load capacity and stability with four rows of precision ball rolling elements
- Block Carriage Design: Compact, versatile design suitable for various mounting configurations
- High and Long Design Version: Extended travel capabilities with increased load-bearing capacity
- Durable Construction: Steel and plastic materials engineered for long-lasting reliability
- Light Preload Specification: Optimized for smooth operation with minimal friction
- Relubrication Capability: Can be relubricated via lubrication nipple for extended service life and reduced downtime
- Comprehensive Sealing: End seals and sealing strips protect against contamination and extend component lifespan
- Wide Operating Temperature Range: Effective performance from -40 to +80°C
- PN Tolerance Class: Precision engineering for demanding applications requiring tight tolerances
Applications:
The NAH65 BNZ is ideal for:
- Large-scale automation systems
- Heavy-duty CNC machinery
- Industrial robotics
- Material handling equipment
- Precision manufacturing machinery
- Other demanding industrial equipment requiring reliable linear guidance solutions
Reference: NAH65BNZ | Brand: NSK
