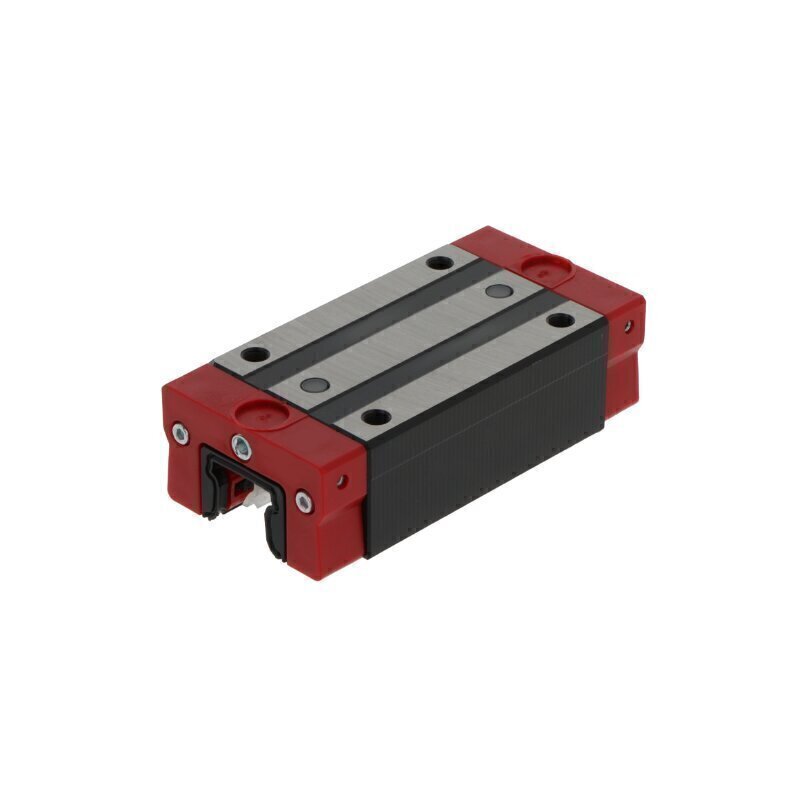

NAH45 BNZ NSK Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
INA Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
NSK
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
45 series
Temperature range
-40 to +80 °C
Tolerance class
PN
Type of rolling elements
Balls
Version
High and long design
Reference
NAH45BNZ
Additional Reference:
10129272
Quick Order Code
BB-518153
Product Description
The NAH45 BNZ NSK Carriage is a precision-engineered linear motion component from NSK's 45 series, designed to deliver exceptional performance in demanding industrial applications. This block carriage combines advanced engineering with robust construction to provide smooth, accurate linear travel for automation systems, CNC machinery, robotics, and other high-performance equipment.
Key Features:
- Four-Row Ball Configuration: Superior load capacity and stability with four rows of precision ball rolling elements
- Block Carriage Design: Compact, reliable linear guidance solution optimized for space-constrained applications
- High and Long Design Version: Extended travel capabilities with increased height for enhanced load distribution
- Durable Construction: Manufactured from premium steel and plastic materials for exceptional longevity and corrosion resistance
- Light Preload Specification: Optimized for smooth operation while maintaining precision and reducing friction
- Relubrication System: Can be conveniently relubricated via lubrication nipple for extended service life
- Comprehensive Sealing: End seals and sealing strips provide effective contamination protection in challenging environments
- Wide Temperature Range: Operates reliably from -40 to +80°C, suitable for both extreme hot and cold applications
- PN Tolerance Class: Meets precision specifications for demanding industrial applications
Ideal Applications: This carriage is particularly suited for automation systems, CNC machinery, robotics, packaging equipment, and other industrial machinery requiring reliable, precise linear motion with high load capacity and durability.
