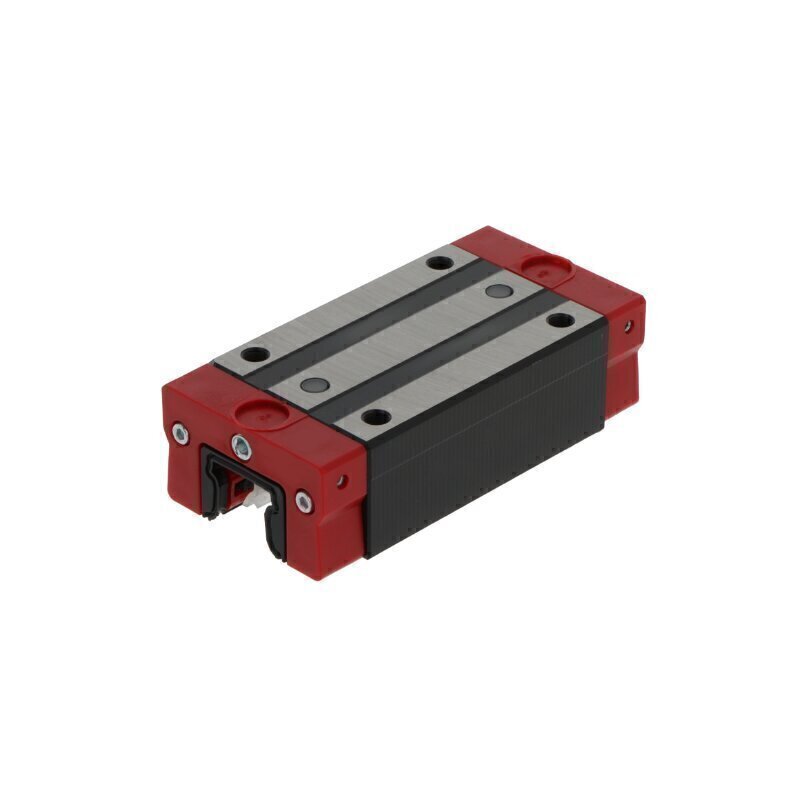

NAH30 BNZ NSK Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
INA Carriages
Ewellix Carriages
G Sleeve Bearings
Fluro Rod Ends - Series G - Male
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
NSK
Design
Block carriage
Lubrication & Maintenance
Can be relubricated (via the lubrication nipple)
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
30 series
Temperature range
-40 to +80 °C
Tolerance class
PN
Type of rolling elements
Balls
Version
High and long design
Reference
NAH30BNZ
Additional Reference:
10129263
Quick Order Code
BB-518149
Product Description
The NAH30 BNZ NSK Carriage is a precision-engineered linear motion component designed for high-performance industrial applications requiring smooth, accurate linear travel. This block carriage combines robust engineering with advanced design features to deliver reliable performance in demanding environments.
Key Features:
- Design: Block carriage configuration for versatile mounting and integration
- Series: 30 series – part of NSK's comprehensive carriage lineup
- Rolling Elements: Four-row ball type rolling elements delivering superior load capacity and stability
- Version: High and long design variant for extended travel and elevated load requirements
- Preload: Light preload specification for smooth operation and reduced friction
- Materials: Durable steel and plastic construction ensuring longevity and reliability
- Lubrication: Relubrication via lubrication nipple for easy maintenance and extended service life
- Sealing: End seals and sealing strips provide comprehensive contamination protection
- Tolerance Class: PN precision grade for accurate linear guidance
- Operating Temperature: -40 to +80°C for reliable performance across diverse industrial environments
- Ball Chain: Without ball chain for streamlined design
Ideal Applications:
The NAH30 BNZ carriage is well-suited for automation systems, CNC machinery, robotics, and other industrial equipment requiring dependable linear guidance and smooth motion control.
Reference: NAH30BNZ | Brand: NSK
