Bearings
Needle Roller Bearings
Combined Bearings
NKXR / NBX Series (Cylindrical Roller)
Quick Code: BB-525892

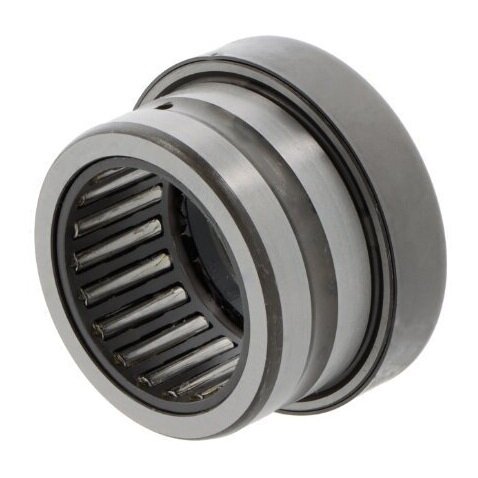

NKXR50Z NKE Needle Roller/Cylindrical Roller Bearing with End Cap
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKX / NAX Series (Thrust Ball)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
NKE
Cage
Sheet steel cage
Inside Dia (Fw)
50mm
Interchangeable With
NBX5035Z
Lubrication
For grease lubrication
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia (D)
62mm
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
With end cap, axial component, single direction
Width (C)
35mm
Reference
NKXR50-Z
Additional Reference:
10155521
Equivalent to:
NKXR50Z
Quick Order Code
BB-525892
Product Description
The NKXR50Z is a high-precision NKE Needle Roller/Cylindrical Roller Bearing with End Cap, engineered for reliable performance in demanding mechanical applications requiring exceptional load-bearing capabilities and dimensional accuracy.
Key Specifications:
- Inside Diameter: 50mm
- Outside Diameter: 62mm
- Width: 35mm
- Cage Material: Sheet steel
- Bearing Material: Standard bearing steel
Technical Characteristics:
- Tolerance Class: P0/PN2 / ABEC 1
- Operating Direction: Single direction bearing
- Lubrication Type: Designed for grease lubrication
- Temperature Range: -20°C to +120°C
- Version: With end cap, axial component
- Interchangeable with: NBX5035Z model
Typical Applications:
- Transmission systems
- Gearbox assemblies
- Conveyor and material handling equipment
- Industrial machinery with high radial load requirements
- Automotive drivetrain components
The NKXR50Z offers superior performance with its robust sheet steel cage and precision engineering, ensuring reliable operation in challenging mechanical environments. Ideal for engineers and maintenance professionals seeking a high-quality, versatile bearing solution.
