Bearings
Needle Roller Bearings
Combined Bearings
NKXR / NBX Series (Cylindrical Roller)
Quick Code: BB-525150

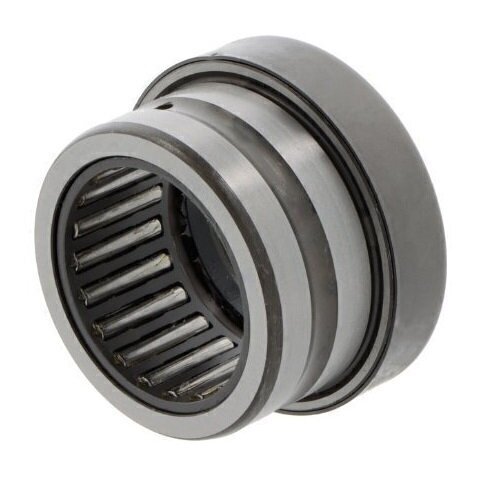

NKXR45Z NKE Needle Roller/Cylindrical Roller Bearing with End Cap
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKX / NAX Series (Thrust Ball)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
NKE
Cage
Sheet steel cage
Inside Dia (Fw)
45mm
Interchangeable With
NBX4532Z
Lubrication
For grease lubrication
Material
Standard bearing steel
Operating direction
Single direction bearing
Outside Dia (D)
58mm
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Version
With end cap, axial component, single direction
Width (C)
32mm
Reference
NKXR45-Z
Additional Reference:
10155519
Equivalent to:
NKXR45Z
Quick Order Code
BB-525150
Product Description
The NKXR45Z is a high-performance NKE Needle Roller/Cylindrical Roller Bearing designed for precision industrial applications, featuring a robust construction and versatile performance characteristics.
Key Specifications:
- Brand: NKE
- Inside Diameter: 45mm
- Outside Diameter: 58mm
- Width: 32mm
- Cage Material: Sheet steel
- Interchangeable With: NBX4532Z
Technical Details:
- Material: Standard bearing steel
- Lubrication: Designed for grease lubrication
- Tolerance Class: P0/PN2 / ABEC 1
- Operating Direction: Single direction bearing
- Temperature Range: -20°C to +120°C
- Version: With end cap, axial component
Applications:
This versatile bearing is ideal for:
- Transmission systems
- Gearbox assemblies
- Precision machinery requiring high radial and axial load capacity
- Industrial equipment with space constraints
- Machinery operating in moderate temperature environments
The NKXR45Z offers exceptional reliability and performance, with its sheet steel cage and single-direction design providing stable and precise rotational movement in demanding industrial applications.
