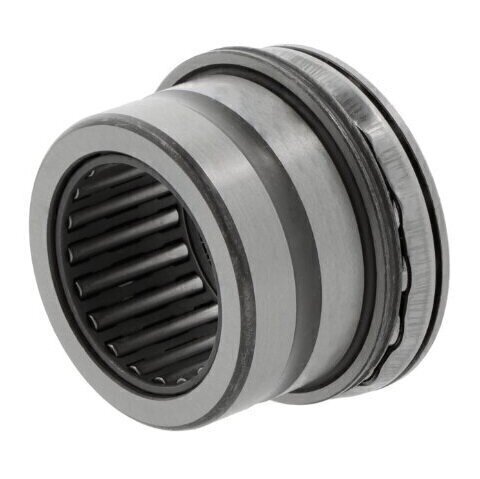

NAX4032 IKO Needle Roller/Thrust Ball Bearing without Cover
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
NKXR / NBX Series (Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
IKO
C1
13mm
C2
10mm
D1
60.1mm max
dw
40mm
Inside Dia (Fw)
40mm
Interchangeable With
NKX40
Outside Dia (D)
52mm
Width (C)
32mm
Quick Order Code
BB-127270
Product Description
The NAX4032 IKO Needle Roller/Thrust Ball Bearing is a precision-engineered combined bearing designed to handle complex load requirements in industrial machinery. This versatile bearing integrates needle roller technology with thrust ball capabilities to provide superior performance in demanding applications.
Key Features:
- Combines needle roller and thrust ball bearing technologies
- Capable of receiving simultaneous thrust and radial loads
- Single direction axial load support
- Open design with no end cap for oil lubrication
- Bore diameter: 40mm
- Outside diameter: 52mm
- Width: 32mm
- Direct interchangeability with NKX40 bearings
Typical Applications:
- Precision machine tools
- Industrial gearboxes
- Automotive transmission systems
- Robotic machinery
- Conveyor and material handling equipment
The NAX4032 offers exceptional versatility for engineering applications requiring compact, high-performance bearing solutions that can manage complex load conditions with minimal friction and maximum durability.
