Quick Code: BB-127269

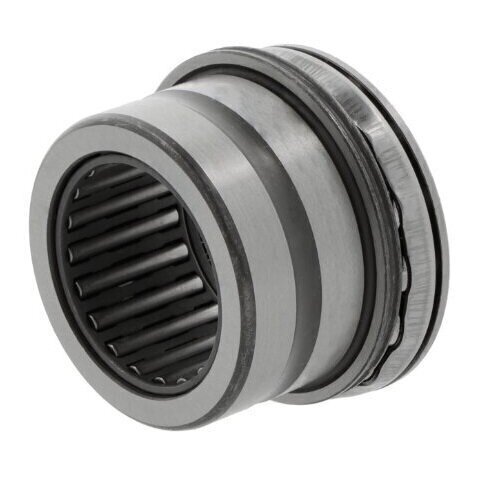

NAX3530 IKO Needle Roller/Thrust Ball Bearing without Cover
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
NKXR / NBX Series (Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
IKO
C1
12mm
C2
9mm
D1
52.1mm max
dw
35mm
Inside Dia (Fw)
35mm
Interchangeable With
NKX35
Outside Dia (D)
47mm
Width (C)
30mm
Quick Order Code
BB-127269
Product Description
The NAX3530 IKO Needle Roller/Thrust Ball Bearing is a versatile precision bearing designed to handle complex load requirements in compact mechanical systems. This innovative bearing combines needle roller and thrust ball bearing technologies to provide exceptional performance in space-constrained applications.
Key Features:
- Integrated axial component for single-direction thrust load handling
- Open-end design suitable for oil lubrication
- Interchangeable with NKX35 bearing models
- Bore diameter: 35mm
- Outside diameter: 47mm
- Width: 30mm
Technical Specifications:
- C1 Dimension: 12mm
- C2 Dimension: 9mm
- Maximum D1 Diameter: 52.1mm
Typical Applications:
- Automotive transmission systems
- Industrial machinery with complex load requirements
- Precision equipment needing compact bearing solutions
- Mechanical systems requiring single-direction thrust load support
This bearing offers engineers and designers a robust solution for applications demanding efficient load distribution in a compact, precision-engineered format.
