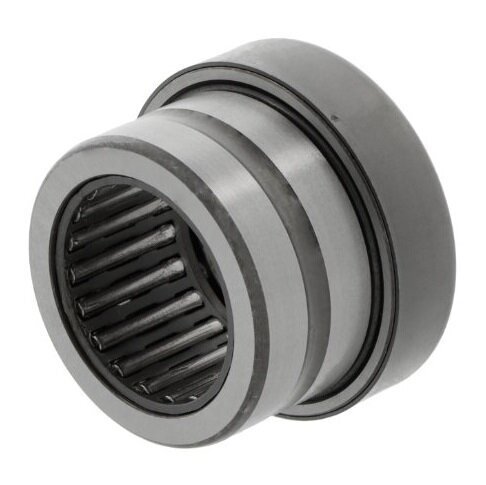

NAX2030Z IKO Needle Roller/Thrust Ball Bearing with Cover
Also Try
NKIB / NATB Series (Angular - Double Direction)
NKIA / NATA Series (Angular - Single Direction)
ZARN Series (Axial Cylindrical Roller)
ZARF Series (Axial Cylindrical Roller)
NKXR / NBX Series (Cylindrical Roller)
Buy Now
Qty:
Product Specification
Brand
IKO
C1
10mm
C2
10.5mm
D2
36.2mm max
dw
20mm
Inside Dia (Fw)
20mm
Interchangeable With
NKX20Z
Outside Dia (D)
30mm
Width (C)
30mm
Quick Order Code
BB-127279
Product Description
The NAX2030Z IKO Needle Roller/Thrust Ball Bearing is a high-performance combined bearing designed to handle complex load requirements in compact mechanical systems. This precision-engineered bearing integrates needle roller and thrust ball bearing technologies to provide exceptional load-handling capabilities.
Key Features:
- Combined needle roller and thrust ball bearing design
- Single direction axial load capacity
- Sealed end cap for effective grease lubrication
- Compact size with 20mm inside diameter and 30mm outside diameter
- Total width of 30mm providing robust structural support
Technical Specifications:
- Brand: IKO
- Inside Diameter: 20mm
- Outside Diameter: 30mm
- Width: 30mm
- Interchangeable with: NKX20Z
Typical Applications:
- Precision machinery with space constraints
- Industrial automation equipment
- Automotive steering and suspension systems
- Robotic mechanical joints
- Compact mechanical power transmission systems
This versatile bearing is ideal for applications requiring efficient handling of both radial and axial loads in a single, compact unit, offering reliable performance and extended operational life.
