Bearings
Cylindrical Roller
N NJ NUP Type Cylindrical Roller
Quick Code: BB-506850

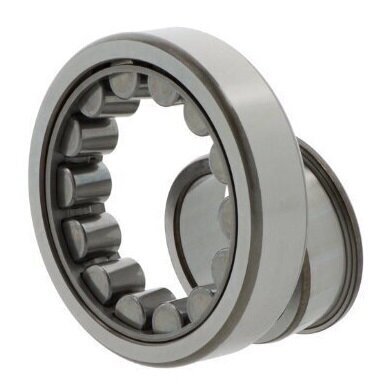

NJ216 ECJC3 SKF Cylindrical Roller 80mm x 140mm x 26mm
Help Articles
Also Try
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
FAG Ball Bearings
Full Complement Cylindrical Roller
Buy Now
Qty:
Product Specification
Bore
Cylindrical bore
Brand
SKF
Cage
Sheet steel cage
Clearance
C3
Current insulation
No current insulation
Design
Support bearing (axial displacement), inner ring removable o
Inside Dia
80mm
Outer ring
Without groove/lubrication holes
Outside Dia
140mm
Roller rows
Single row bearing
Seal
None, open bearing
Temperature range
-30 to +150 °C
Tolerance class
Dimensional accuracy P0/PN or ABEC 1, running accuracy P6 or
Width
26mm
Reference
NJ216 ECJC3
Additional Reference:
10088103
Quick Order Code
BB-506850
Product Description
SKF single row cylindrical roller bearings can accommodate heavy radial loads and high speeds. The ring with the integral flanges together with the cylindrical roller and cage assembly can be separated from the other ring. This results in easy mounting and dismounting, particularly where the load conditions are such that interference fits are required for both rings.The outer ring of the NJ design bearing has two integral flanges and the inner ring has one integral flange. These bearings can locate the shaft axially in one direction.
Key Features
