Bearings
Cylindrical Roller
N NJ NUP Type Cylindrical Roller
Quick Code: BB-514003

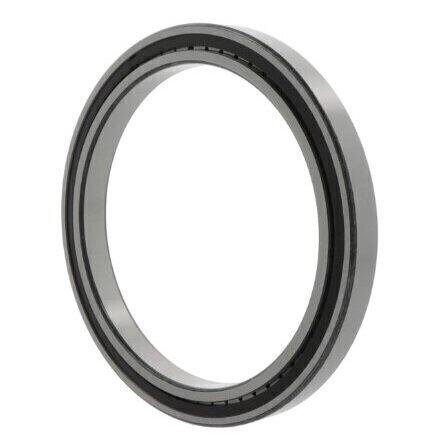

NCF3018 CVC3 SKF Cylindrical Roller 90mm x 140mm x 37mm
Help Articles
Also Try
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
FAG Ball Bearings
Full Complement Cylindrical Roller
Buy Now
Qty:
Product Specification
Bore
Cylindrical bore
Brand
SKF
Cage
None, full complement bearing
Clearance
C3
Current insulation
No current insulation
Design
Support bearing (axial displacement)
Inside Dia
90mm
Outer ring
Without groove/lubrication holes
Outside Dia
140mm
Roller rows
Single row bearing
Seal
None, open bearing
Temperature range
-30 to +150 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
37mm
Reference
NCF3018 CVC3
Additional Reference:
10116913
Quick Order Code
BB-514003
Product Description
Single row full complement cylindrical roller bearings are engineered to support exceptionally high radial loads while operating at moderate speeds. These bearings feature the maximum possible number of rollers, as they lack a cage. The NCF design includes two integral flanges on the inner ring and one flange on the outer ring, allowing for axial displacement in one direction. A retaining ring on the outer ring secures the bearing assembly, and it is important to ensure that the retaining ring is not subjected to axial loads during operation.
