Bearings
Cylindrical Roller
N NJ NUP Type Cylindrical Roller
Quick Code: BB-504982

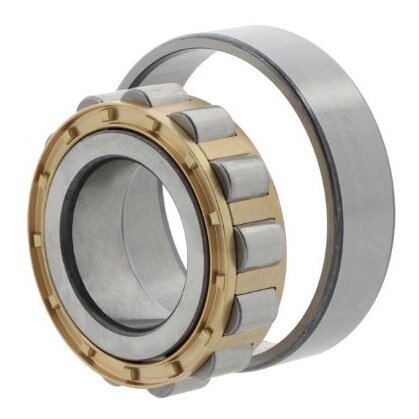

N314 ECM SKF Cylindrical Roller 70mm x 150mm x 35mm
Help Articles
Also Try
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
FAG Ball Bearings
Full Complement Cylindrical Roller
Buy Now
Qty:
Product Specification
Bore
Cylindrical bore
Brand
SKF
Cage
Brass cage
Clearance
Standard
Current insulation
No current insulation
Design
Floating bearing, outer ring removable on both sides
Inside Dia
70mm
Outer ring
Without groove/lubrication holes
Outside Dia
150mm
Roller rows
Single row bearing
Seal
None, open bearing
Temperature range
-30 to +150 °C
Tolerance class
Dimensional accuracy P0/PN or ABEC 1, running accuracy P6 or
Width
35mm
Reference
N314 ECM
Additional Reference:
10079862
Quick Order Code
BB-504982
Product Description
SKF single row cylindrical roller bearings can accommodate heavy radial loads and high speeds. The ring with the integral flanges together with the cylindrical roller and cage assembly can be separated from the other ring. This results in easy mounting and dismounting, particularly where the load conditions are such that interference fits are required for both rings.The inner ring of an N design bearing has two integral flanges while the outer ring has no flanges. Axial displacement of the shaft with respect to the housing can be accomodated in both directions.
Key Features
