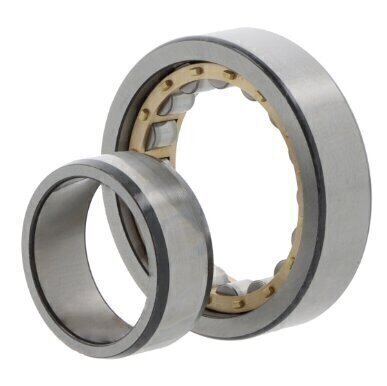

NU252 MAC3 SKF Cylindrical Roller 260mm x 480mm x 80mm
Help Articles
Also Try
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
FAG Ball Bearings
Full Complement Cylindrical Roller Bearings
Buy Now
Qty:
Product Specification
Bore
Cylindrical bore
Brand
SKF
Cage
Brass cage
Clearance
C3
Current insulation
No current insulation
Design
Floating bearing, inner ring removable on both sides
Inside Dia
260mm
Outer ring
Without groove/lubrication holes
Outside Dia
480mm
Roller rows
Single row bearing
Seal
None, open bearing
Temperature range
-30 to +150 °C
Tolerance class
Dimensional accuracy P0/PN or ABEC 1, running accuracy P6 or
Width
80mm
Reference
NU252 MAC3
Additional Reference:
10056399
Quick Order Code
BB-499879
Product Description
SKF single row cylindrical roller bearings can accommodate heavy radial loads and high speeds. The ring with the integral flanges together with the cylindrical roller and cage assembly can be separated from the other ring. This results in easy mounting and dismounting, particularly where the load conditions are such that interference fits are required for both rings.The outer ring of the NU design bearing has two integral flanges while the inner ring has no flanges. Axial displacement of the shaft with respect to the housing can be accomadated in both directions. These bearings have a C3 clearance to allow expansion within the bearing at high speeds/temperatures.
