N NJ NUP Type Cylindrical Roller Bearings
Quick Code: BB-496179

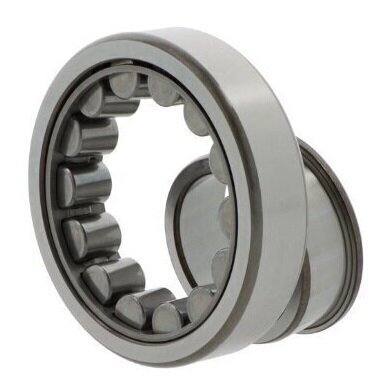

NJ208 ECJ SKF Cylindrical Roller 40mm x 80mm x 18mm
Help Articles
Also Try
Metric Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
FAG Ball Bearings
Full Complement Cylindrical Roller Bearings
Buy Now
Product Specification
Bore
Cylindrical bore
Brand
SKF
Cage
Sheet steel cage
Clearance
Standard
Current insulation
No current insulation
Design
Support bearing (axial displacement), inner ring removable o
Inside Dia
40mm
Outer ring
Without groove/lubrication holes
Outside Dia
80mm
Roller rows
Single row bearing
Seal
None, open bearing
Temperature range
-30 to +150 °C
Tolerance class
Dimensional accuracy P0/PN or ABEC 1, running accuracy P6 or
Width
18mm
Reference
NJ208 ECJ
Additional Reference:
10023917
Quick Order Code
BB-496179
Product Description
SKF single row cylindrical roller bearings can accommodate heavy radial loads and high speeds. The ring with the integral flanges together with the cylindrical roller and cage assembly can be separated from the other ring. This results in easy mounting and dismounting, particularly where the load conditions are such that interference fits are required for both rings.The outer ring of the NJ design bearing has two integral flanges and the inner ring has one integral flange. These bearings can locate the shaft axially in one direction.
Key Features
