Quick Code: BB-563003

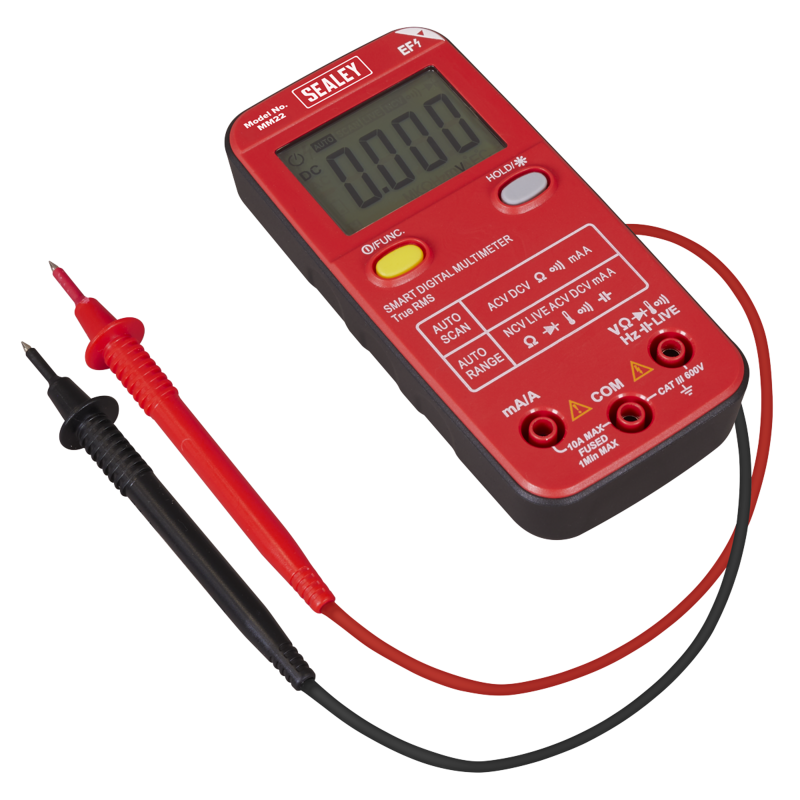

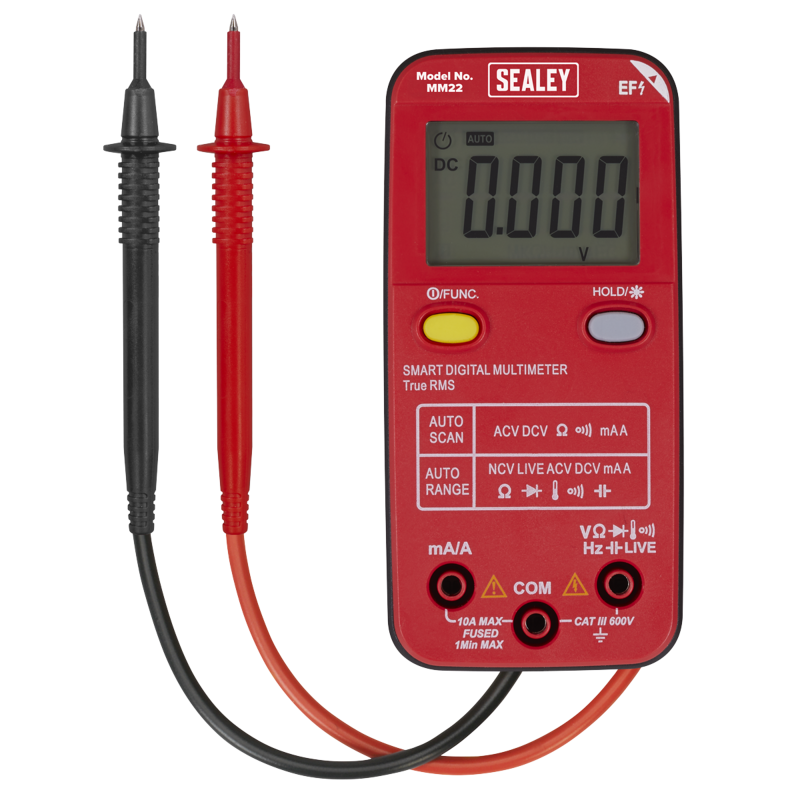

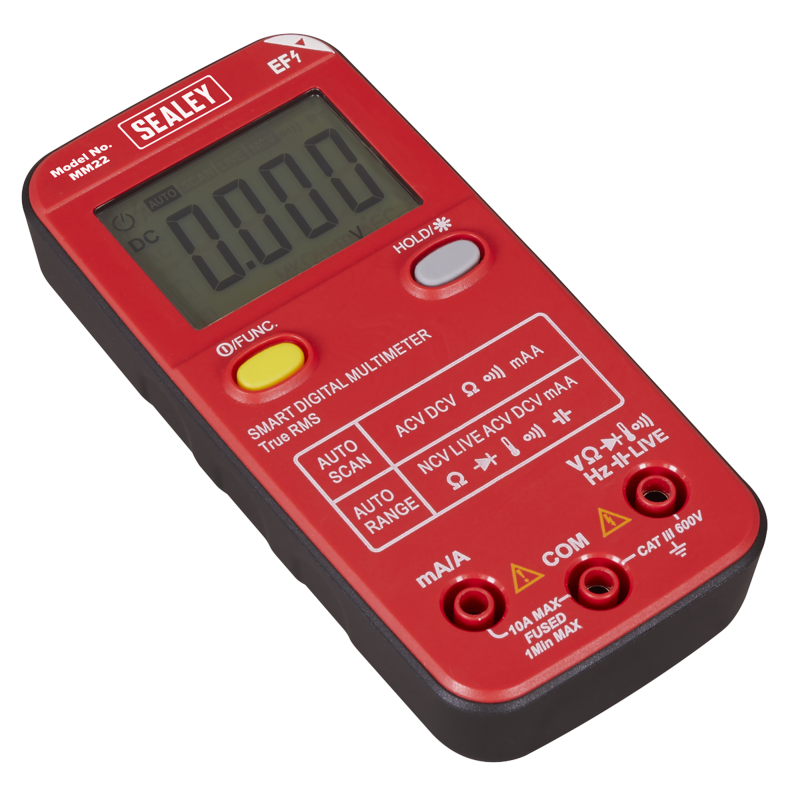

Sealey MM22 13-Function Professional Smart Auto-Scanning Digital Multimeter
Also Try
Probes & Circuit Testers
Battery & Alternator Diagnostics
Wiring Tools
Battery & Alternator Tools
Miscellaneous
Buy Now
Product Specification
AC Current (Accuracy)
4000mA/10.00A
AC Voltage (Accuracy)
400mV/4V/40V/400V/600V
Auto Range
ACV/DCV/Resistance/Continuity/Diode/Temperture/Capacitance/NCV/LIVE/mA/A
Auto Scan
V/R/CONT/A
Backlit/Tourch
Yes
Battery (Supplied)
2 x 1.5V (AAA)
Brand
Sealey
Capacitance (Accuracy)
4.000nF~4mF
Conformity
EN 61010-1
Continuity
Yes
DC Current (Accuracy)
4000mA/10.00A
DC Voltage (Accuracy)
400mV/4V/40V/400V/600V
Digits x Height
4 x 16mm
Diode Test
Yes
Duty Cycle
No
Frequency (Accuracy)
Yes
Hi-Impact Rubber Case
No
Information
Data-Hold, Auto-Power-Off, Integral Stand & Live Test.
Low Battery Indicator
Yes
Model No
MM22
Nett Weight
0.20kg
Resistance (Accuracy)
400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Size (L x W x D)
130 x 62 x 26mm
Temperature (Accuracy)
-200°C to 1200°C
-328°F to 2192°F
Transistor Test
No
Weight
0.138kg
Reference
MM22
Quick Order Code
BB-563003
Product Description
HIGH-PRECISION Smart auto-scanning multimeter.INTELLIGENT - The multimeter automatically detects and selects the required test function, AC/DC, voltage/current, resistance and continuity.
CONFIRMS TO EN 61010-1 CATIII 600V SAFETY REQUIRMENTS - For electrical equipment for measurement, control and laboratory use.
FEATURES - Temperature measurement capability, data-hold and auto-power-off function.
NON-CONTACT VOLTAGE DETECTION (NCVD) - Enables one-handed use.
LIVE TEST FEATURE - Can test for live feeds with a single probe.

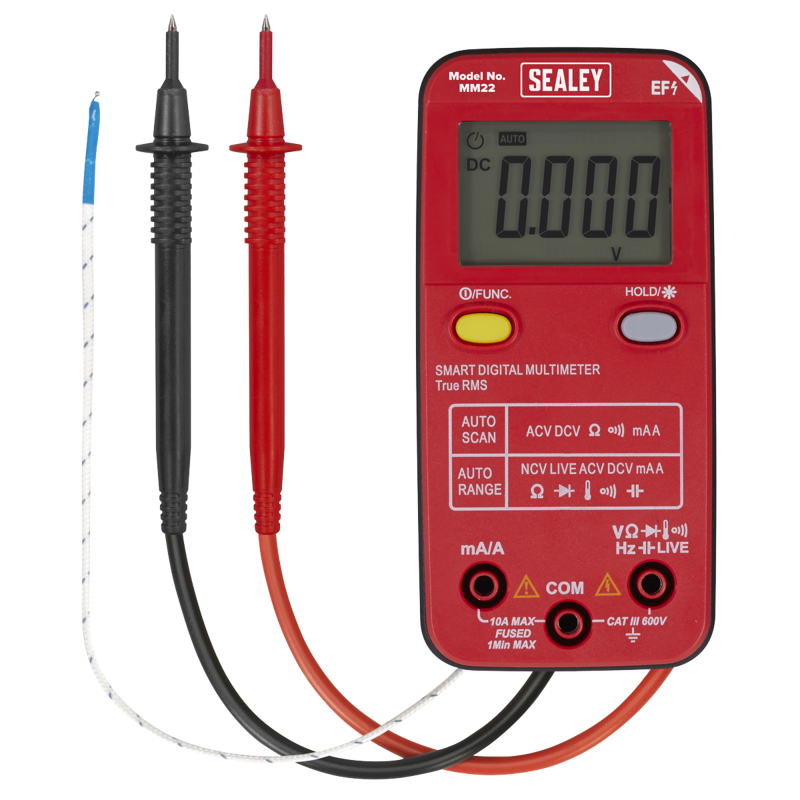

SUPPLIED WITH PROBES Including a thermocouple probe and integral upright stand for use on the workbench.
LCD DISPLAY Clear and easy-to-read.
