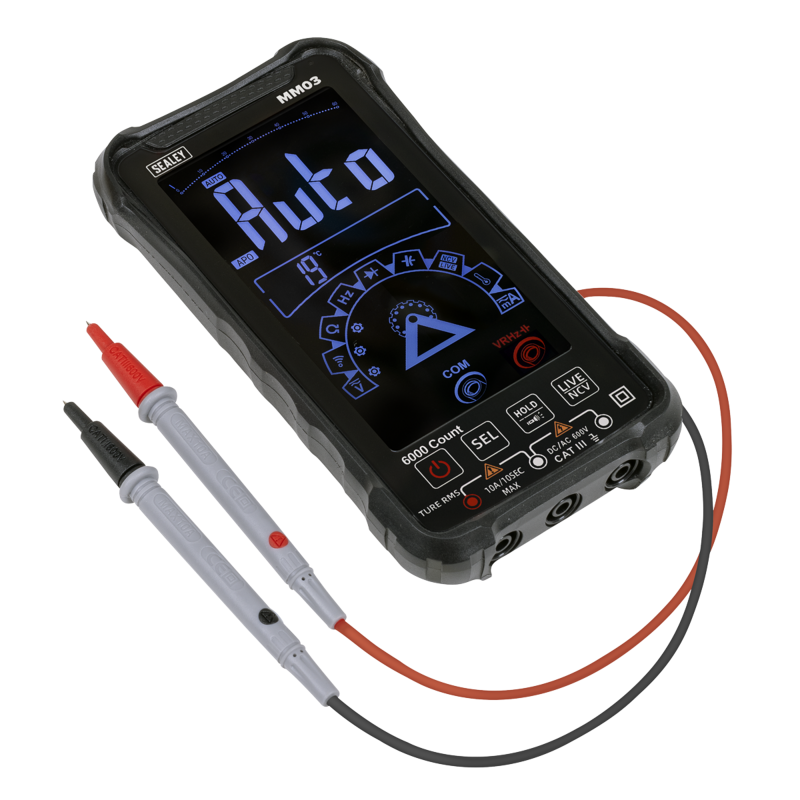

Sealey MM03 Touchscreen Rechargeable Auto-Ranging Digital Smart Multimeter 10-Function
Also Try
Probes & Circuit Testers
Battery & Alternator Diagnostics
Wiring Tools
Battery & Alternator Tools
Miscellaneous
Buy Now
Product Specification
AC Current (Accuracy)
Range: 6/10A, Resolution: 0.001/0.01A, Accuracy:
=-(3% +10 digits)
AC Voltage (Accuracy)
Range: 6/60/600V, Resolution: 0.001/0.01/0.1V, Accuracy: =-(0.8% +5 digits)
Auto Range
YES
Auto Scan
V/R/CONT
Backlit/Torch
YES
Battery
Rechargeable 3.7V Li-ion
Brand
Sealey
Capacitance (Accuracy)
Range: 6/60/600nF, 6/60/600uF, 60mF, Resolution: 0.001/0.01/0.1nF, 0.001/0.01/0.1uF, 0.001mF, Accuracy: =(4.5% +5 digits)
Conformity
EN 61010-2
Continuity Audible
YES
DC Current (Accuracy)
Range: 6/10A, Resolution:
0.001/0.01A, Accuracy: =-(2.5% of reading +10 digits)
DC Voltage (Accuracy)
Range: 6/60/600V, Resolution: 0.001/0.01/0.1V, Accuracy: =-(0.8% +5 digits)
Digits x Height
4 x 23mm
Diode Test
YES
Duty Cycle
NO
Frequency (Accuracy)
Range: 6/60/600Hz, 6/60/600kHz, 6MHz, Resolution:
0.001/0.01/0.1Hz, 0.001/0.01/0.1kHz, 1kHz, Accuracy: =-(0.1% +3 digits)
Hi-Impact Rubber Case
YES
Information
Data-Hold, Auto-Power-Off, Integral Stand & Live Test
Low Battery Indicator
YES
Model No
MM03
Nett Weight
0.317kg
Resistance
Range: 6M/60M (Ohm), Resolution: 0.001M/0.01M(Ohm), Accuracy:
=-(2% +5 digits)
Resistance (Accuracy)
Range: 600/6k/60/600k (Ohm), Resolution: 0.1/1/0.01k/0.1k (Ohm), Accuracy: =-(1.2% +3 digits)
Size
158 x 82 x 23mm
Temperature (Accuracy)
Range: -200°C to 1200°C
-328°F to 2192°F, Resolution: 1°C, Accuracy: =-(5/1/2% + 4/3/5 digits)
Transistor Test
NO
Reference
MM03
Quick Order Code
BB-661189
Product Description
LARGE LCD TOUCHSCREEN That is easy to navigate. INTELLIGENT - The multimeter automatically detects and selects the required test function, AC/DC, voltage/current, resistance and continuity.
VERSATILE FEATURES - Includes temperature measurement capability, data-hold and auto-power-off function.
NON-CONTACT VOLTAGE DETECTION (NCVD) Enables one-handed use.
6000 COUNT High precision measurements.
LIVE TEST FEATURE - A single probe can test for live feeds.
LED WORK LIGHT Enhances visibility in low light conditions.

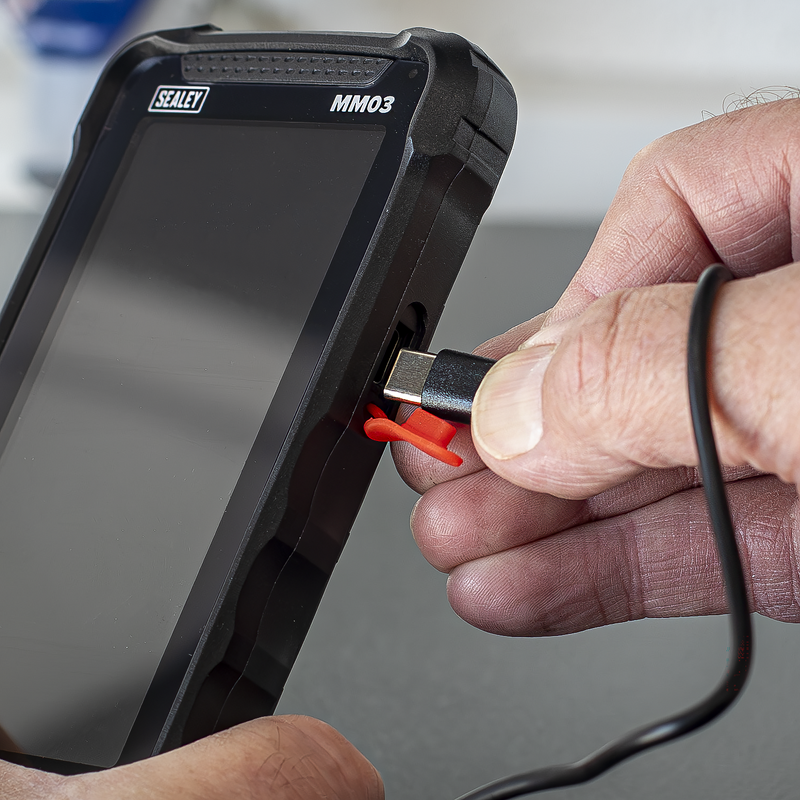

RECHARGABLE Supplied with USB Type-C charging cable.

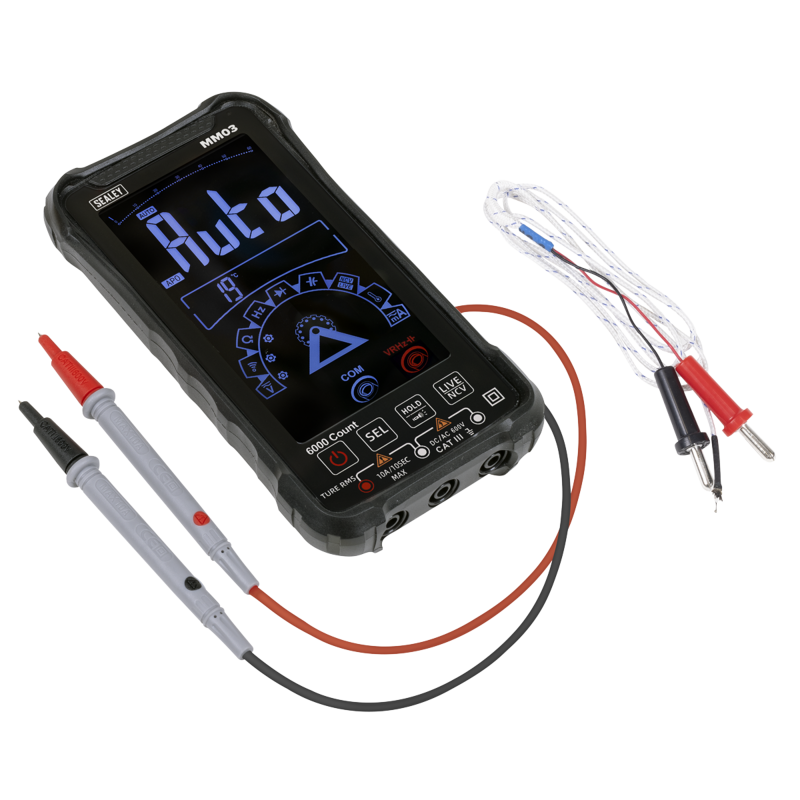

INCLUDES Probes and thermocouple probe.
HEAVEY DUTY High-impact case.

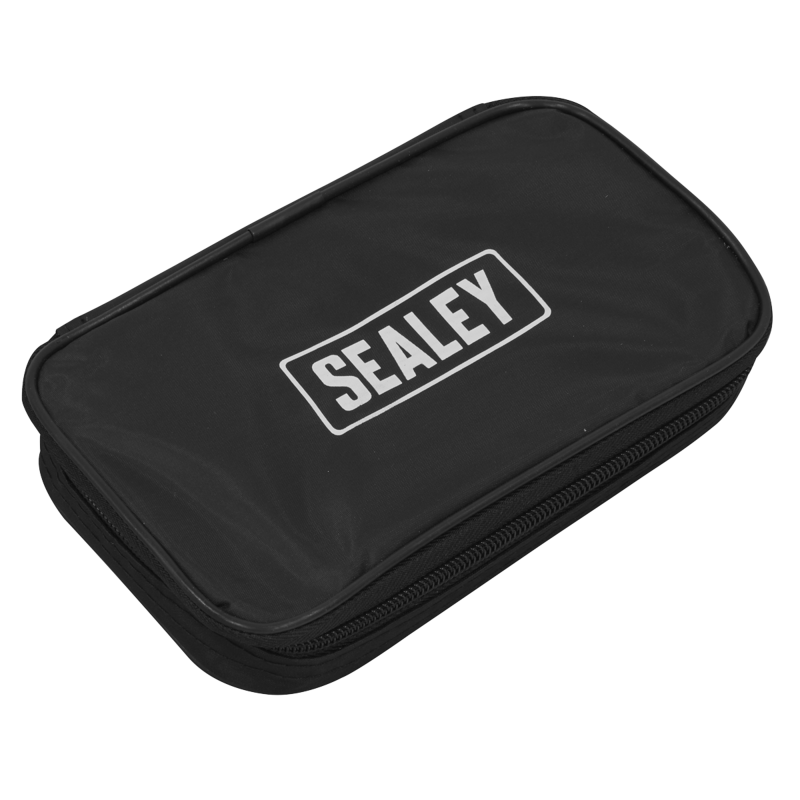

SUPPLIED IN A STORAGE CASE For secure storage and portability solutions.
CONFIRMS TO EN 61010-2 CATIII 600V SAFETY REQUIRMENTS - For electrical equipment for measurement, control and laboratory use.
