Quick Code: BB-657509

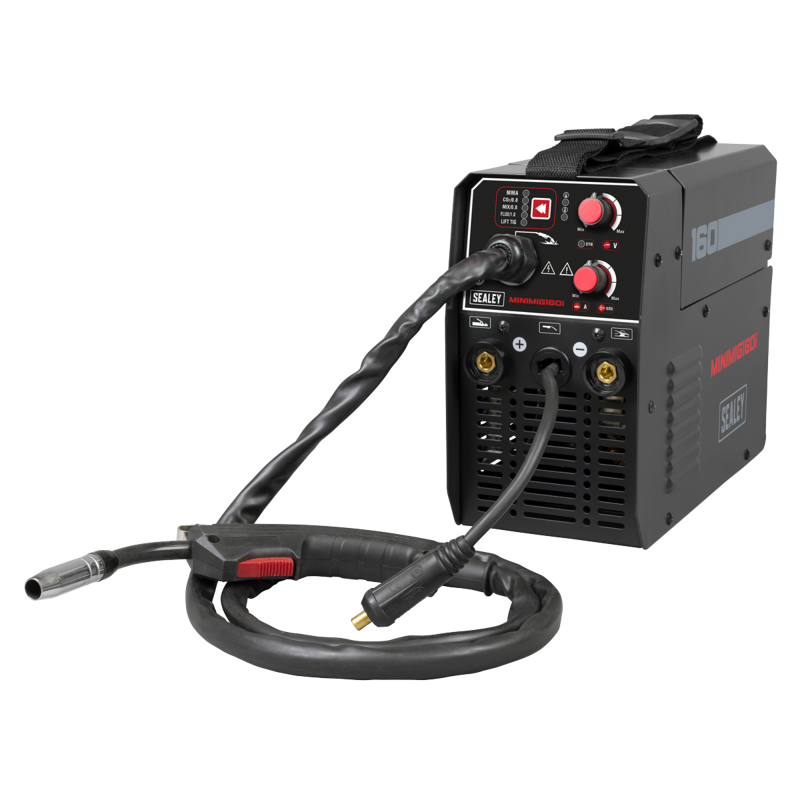

Sealey MINIMIG160i MIG/TIG MMA (ARC/STICK) Inverter Welder 160A 230V
Also Try
Arc/TIG
Accessories
Consumables
Plasma
Buy Now
Product Specification
Absorbed Power
4.4kW
Brand
Sealey
Duty Cycle MIG
60% @ 160A, 100% @ 124A
Duty Cycle MMA/ARC
60% @ 160A, 100% @ 124A
Duty Cycle TIG
60% @ 160A, 100% @ 124A
Electrode Capacity
1.6-4mm
Insulation Class
H
IP Rating
IP21S
Model No
MINIMIG160i
Nett Weight
6.9kg
Note *
To achieve maximum power a 16A supply may be required.
Supply
230V 16A*
Welding Current
10-160A
Wire Capacity
1kg Ø0.8/0.9/1mm solid wire and Ø0.8/Ø0.9mm flux cored MIG wire
Reference
MINIMIG160i
Quick Order Code
BB-657509
Product Description
IGBT INVERTER TECHNOLOGY - IGBT Inverter fan-cooled DC power supply for MIG/TIG and MMA/ARC welding applications up to 160A. 3-IN-1 FUNCTION - Multi-functional welder combining MIG/TIG and MMA applications into a single compact unit, ideal for workshops, garages, bodyshops, and mobile technicians.
HIGHLY PORTABLE - Ultra-compact unit, weighing only 6.9kg, features a carry strap for portability, allowing easy transport to job sites.
FEATURING - Hot start, anti-stick, forced air cooling and thermal cut out protection.
WELDING CAPABILITY - Unit can MIG weld using 1kg 0.8/0.9/1mm solid wire and 0.8/0.9mm flux cored MIG wire, MMA/ARC weld 1.6 up to 4mm electrode.

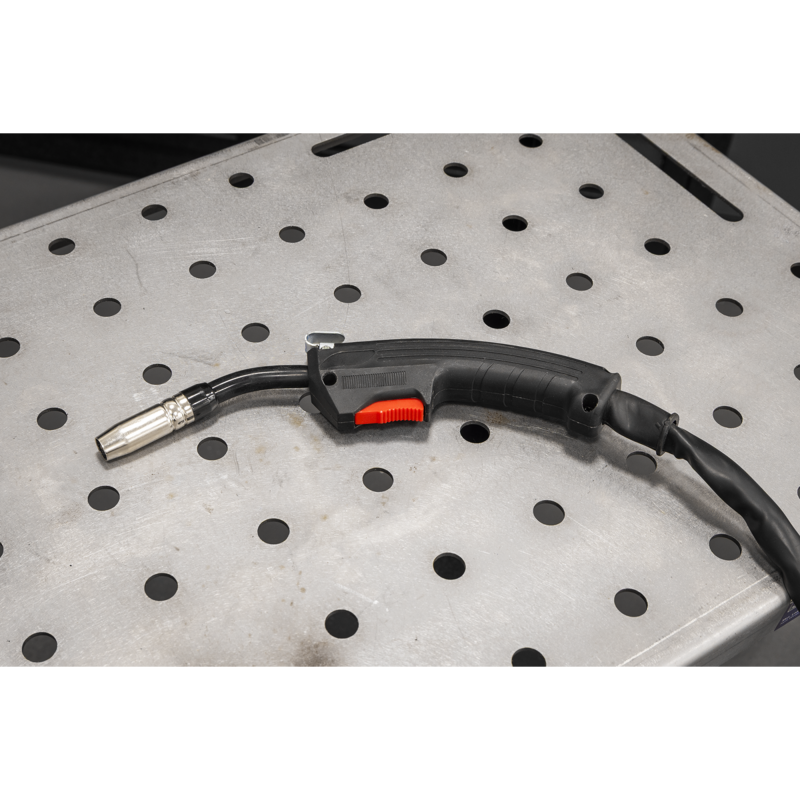

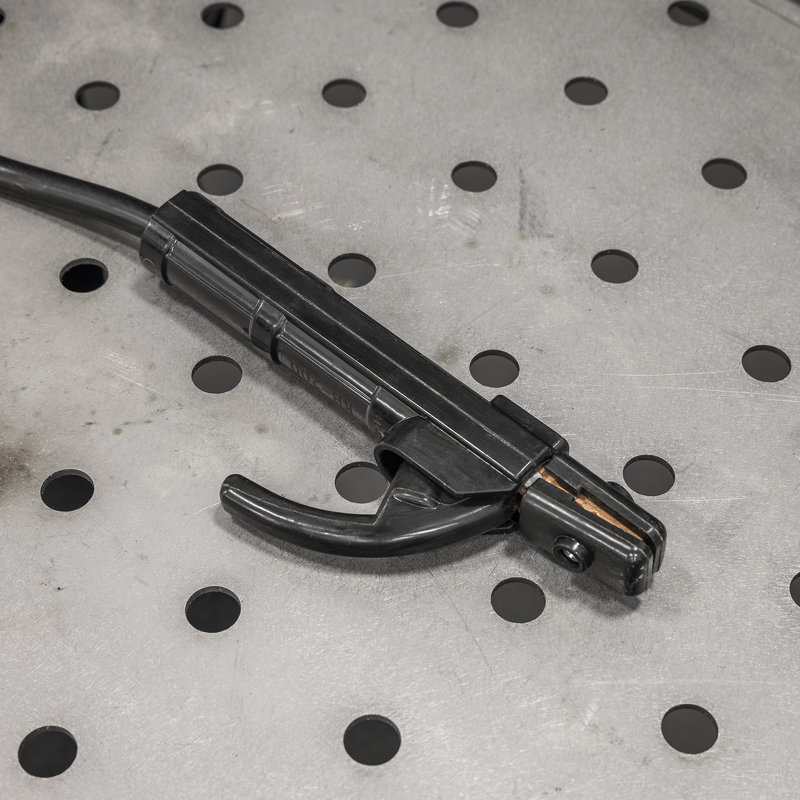

SUPPLIED WITH - Supplied with fixed non-live MIG torch, 1.4m earth cable/clamp, 1.6m electrode holder.
DUTY CYCLE MIG - 60 160A, TIG - 60 160A, MMA/ARC - 60 160A.
