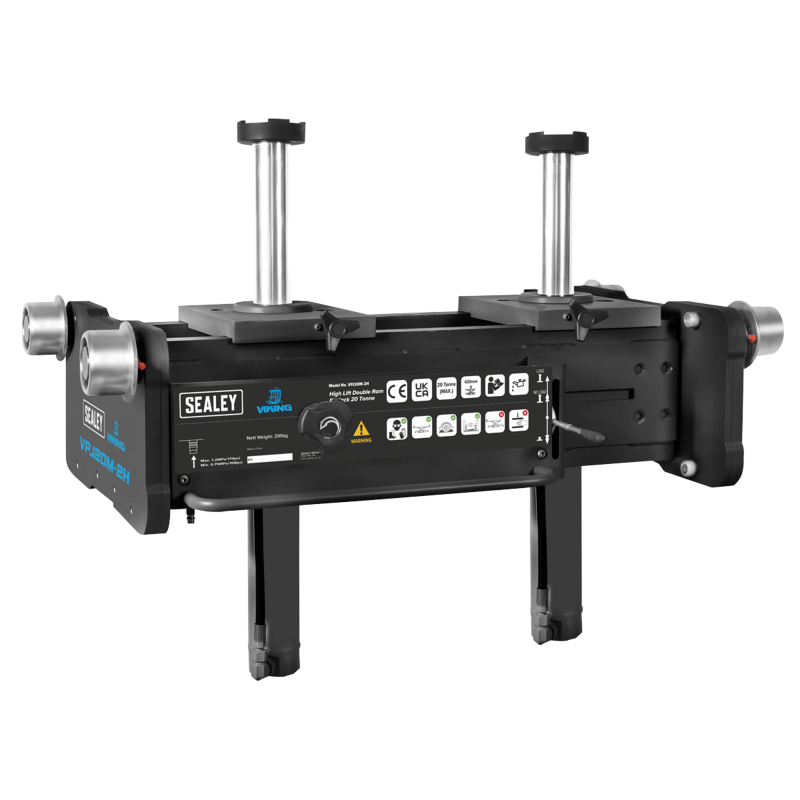

Sealey VPJ20M-2H Viking Pit Jack 20 Tonne Double Ram High Lift
Also Try
Chain Blocks & Hoists
Trolley Jacks
Cranes
Tie Downs
Creepers & Seats
Buy Now
Qty:
Product Specification
Beam Lift
420mm
Brand
Viking
Capacity
20 Tonne
Load Arm Reach
N/A
Model No
VPJ20M-2H
Nett Weight
295kg
Optional Accessories
VPJ20MCBA - Twin Ram Cross Beam Adaptor, VJP20M2CBA - Twin Ram Cross Beam Adaptor Extendable, VPJ-VA - V-Adaptor, VJP-UA - U-Adaptor, VPJ-A7 - Extension For Pit Jacks 100mm, VPJ-A8 - Extension For Pit Jacks 200mm, VPJ20S-2HSS - Integrated Safety Stand.
Support Arm Reach
N/A
Reference
VPJ20M-2H
Quick Order Code
BB-657544
Product Description
EASY GLIDE - Fitted with leaf spring support bearings for easy glide transversing the ram.HIGH LIFT - Full 420mm lifting stroke for high axled vehicles.
INDEPENDENT RAM LIFT - Shut off valves allow twin or single ram lifts.
PNEUMATIC CONTROL - Air operation takes the effort out of lifting heavy plant, tractors and commercial vehicles.
QUICK LIFT - Rocket lift feature brings the saddle into contact with the jacking point quickly and slows once under load for a controlled lift.
SAFE DESCENT - Fitted with deadman controls and a limited descent control valve.
ADJUSTABLE FIT - Manufactured to suit pit widths between 920 - 1220mm
CONVENIENCE - Large handle for moving the frame, air coupling and water separator and spare parts tray/tool tray with rubber mat insert.
3 YEAR GUARANTEE.
