Quick Code: BB-517690

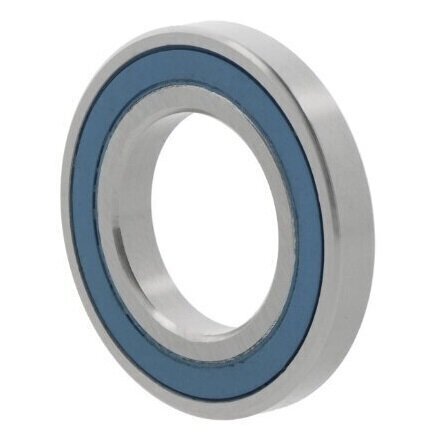

SR6-2RS ZEN Stainless Sealed Deep Groove Ball Bearing 9.525mm x 22.225mm x 7.142mm
Help Articles
Also Try
Metric Oil Seals
Imperial Oil Seals
Dunlop & Budget Ball Bearings
SKF Ball Bearings
Buy Now
Qty:
Product Specification
Ball rows
Single row bearing
Bore
Cylindrical bore
Brand
ZEN
Cage
Sheet steel cage
Clearance
Normal radial clearance
Current insulation
No current insulation
Inside Dia
9.525mm = 3/8inch
Material
Stainless steel
Material of rolling elements
Stainless steel
Outer ring
Without flange/groove
Outside Dia
22.225mm = 7/8inch
Sealing
Sealed
Temperature range
-20 to +120 °C
Tolerance class
Tolerance class P0/PN2 / ABEC 1
Width
7.14375mm = 9/32inch
Reference
SR6-2RS
Additional Reference:
10128393
Quick Order Code
BB-517690
Product Description
The SR6-2RS ZEN Stainless Sealed Deep Groove Ball Bearing is a premium precision component designed for reliable performance in demanding applications. Crafted from high-quality stainless steel, this bearing offers exceptional durability and corrosion resistance in various industrial and mechanical environments.
Key Features:
- Single row deep groove ball bearing design
- Sealed configuration with 2RS (double rubber seal) protection
- Stainless steel construction for enhanced corrosion resistance
- Imperial inch-based sizing (3/8" inside diameter)
- Sheet steel cage for improved stability
- Normal radial clearance for consistent performance
Technical Specifications:
- Inside Diameter: 9.525mm (3/8 inch)
- Outside Diameter: 22.225mm (7/8 inch)
- Width: 7.14375mm (9/32 inch)
- Material: Stainless steel (inner and outer rings)
- Tolerance Class: P0/PN2 / ABEC 1
- Operating Temperature Range: -20°C to +120°C
- Sealing: Fully sealed with rubber shields
Ideal Applications:
- Food processing equipment
- Medical and pharmaceutical machinery
- Marine and marine-adjacent environments
- Chemical processing equipment
- Precision instruments and devices
- Agricultural machinery
- Small electric motors
The sealed design provides superior protection against contaminants, making this bearing an excellent choice for applications requiring minimal maintenance and optimal performance in challenging environments. Its stainless steel construction ensures long-lasting reliability and resistance to corrosion.
Brand: ZEN
Reference: SR6-2RS
