Quick Code: BB-142596
RTUEY35 35mm INA Take Up Unit
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Bearing Inserts
INA Pillow Block Housed
INA 2 Bolt Flanged
Buy Now
Qty:
Product Specification
Alternative Part Number
RTUEY35-XL; RTUEY35XL
Bearing Insert
GYE35KRRB
Bore Size (d)
35mm
Brand
INA
Total Height (L)
131.5mm
Total Width (H)
102mm
Reference
RTUEY35
Quick Order Code
BB-142596
Product Description

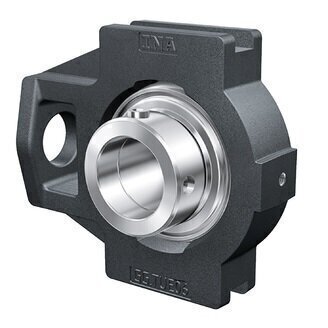

RTUEY35 35mm INA Take Up Unit
Normal duty take up cast iron housing unit complete with grub screw insert with R seals. The cast iron housing includes a grease nipple for re-lubrication.
The inserts can be removed allowing you to replace with a new insert once required which can be ordered separately.
d 35 mm
L 131,5 mm
H 102 mm
A 40 mm
A1 12 mm Tolerance: H13
A2 30 mm
B 42,9 mm
H1 89 mm Tolerance: +/-0,15
L1 80 mm
L2 13 mm
L3 63 mm
N 22 mm
N1 18 mm
N2 36,5 mm
Q M6
S1 25,4 mm
T 64 mm
m 1,74 kg Mass
Cr 27500 N Basic dynamic load rating, radial
C0r 15300 N Basic static load rating, radial
TUE07 Designation of housing
GYE35-XL-KRR-B Designation of bearing
