Quick Code: BB-151763

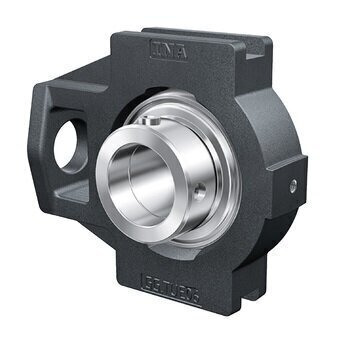

PTUE20 20mm INA Take Up Unit
Also Try
INA 4 Bolt Round
INA 4 Bolt Flanged
INA Bearing Inserts
INA Pillow Block Housed
INA 2 Bolt Flanged
4 Bolt Flanged Bearings
Dunlop & Budget Ball Bearings
Buy Now
Qty:
Product Specification
Alternative Part Number
PTUE20-XL
Bore Size (d)
20mm
Brand
INA
Total Height (L)
94.5mm
Total Width (H)
90mm
Reference
PTUE20
Quick Order Code
BB-151763
Product Description
PTUE20 20mm INA Take Up Unit
Cast iron housing, radial insert ball bearing with eccentric locking collar, P seals.
The inserts can be removed allowing you to replace with a new insert once required which can be ordered separately.
d 20 mm
L 94,5 mm
H 90 mm
A 37 mm
A1 12 mm Tolerance: H13
A2 25 mm
B1 31 mm
d3 max 33 mm
H1 76 mm Tolerance: +/-0,15
L1 60 mm
L2 9 mm
L3 50 mm
N 19 mm
N1 18 mm
N2 32 mm
Q Rp1/8
S1 23,5 mm
T 51 mm
m 0,83 kg Mass
Cr 13600 N Basic dynamic load rating, radial
C0r 6600 N Basic static load rating, radial
TUE04 Designation of housing
GRAE20-XL-NPP-B Designation of bearing.
