Quick Code: BB-704600

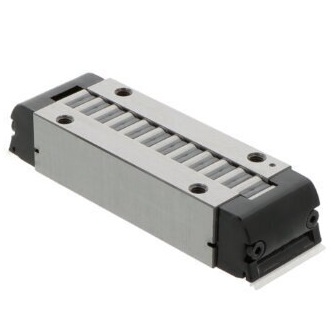

RUS26086-KS-GR3/-10-15 INA Linear Recirculating Bearing Unit
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
THK Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball-/Roller rows
Single row
Brand
INA
Material
Steel, plastic
Seal
No seal
Tolerance class
G3
Reference
RUS26086-KS-GR3/-10-15
Equivalent to:
RUS26086-KS.GR3/-10-15
Quick Order Code
BB-704600
Product Description
The RUS26086-KS-GR3/-10-15 INA Linear Recirculating Bearing Unit is a precision linear motion component engineered for demanding industrial applications requiring smooth, accurate movement and reliable positioning. This recirculating bearing unit features a precision-grade construction, delivering consistent performance and easy setup in a wide range of linear motion systems.
Key Specifications
- Brand: INA (Schaeffler)
- Height (H): 26 mm
- Total Length (L tot): 98 mm
- Width (b): 40 mm
- Outer Diameter (D): 40 mm (1.5748 inch)
- Weight: 0.49 kg
- Basic Dynamic Load Rating (C): 76,000
- Seal: No seal
Key Features
- GR3 - Precision Grade: High-precision grade ensures accurate linear positioning for demanding applications
- -10-15 - Sorting in Micron: Tightly sorted tolerance range for consistent, repeatable performance across matched components
Features and Benefits
- Compact Design: A 26 mm height combined with a 98 mm total length makes this unit suitable for space-constrained installations
- High Load Capacity: A basic dynamic load rating of 76,000 supports robust performance under demanding operational loads
- Lightweight Construction: At just 0.49 kg, this unit contributes to efficient, responsive linear motion systems
- KS: With end face lubrication connectors
Ideal Applications
The RUS26086-KS-GR3/-10-15 is well-suited for:
- Precision machine tool applications requiring accurate linear positioning
- Industrial automation and assembly systems
- Material handling equipment demanding reliable motion control
- Compact linear motion systems with high load-bearing requirements
