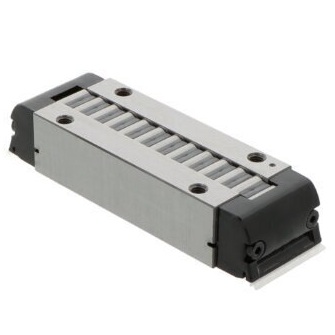

RUS19105-KS-GR3/-10-15 INA Linear Recirculating Bearing Unit
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
THK Carriages
NSK Carriages
Ewellix Carriages
Male Equal Swivel Union Tapered
Simplicity
Buy Now
Product Specification
Ball-/Roller rows
Single row
Brand
INA
Material
Steel, plastic
Seal
No seal
Tolerance class
G3
Reference
RUS19105-KS-GR3/-10-15
Equivalent to:
RUS19105-KS.GR3/-10-15
Quick Order Code
BB-704551
Product Description
The RUS19105-KS-GR3/-10-15 INA Linear Recirculating Bearing Unit is a precision-engineered linear motion component designed for demanding industrial applications requiring smooth, accurate, and highly repeatable linear movement. Combining a low-profile, compact form factor with high load capacity, this bearing unit delivers dependable guidance and rigidity for space-constrained systems where precision performance is essential.
Product Overview
Manufactured to the GR3 precision grade and sorted within a defined micron range (-10-15), this bearing unit ensures consistent, accurate linear guidance that meets the exacting requirements of high-precision positioning systems.
Key Specifications
- Brand: INA - leading precision linear motion technology provider
- Height (H): 19 mm - low-profile design for space-efficient installations
- Total Length (L tot): 117.1 mm
- Width (b): 27 mm - compact footprint for confined mounting environments
- Basic Dynamic Load Rating (C): 68000 N for reliable performance under demanding load conditions
- Precision Grade: GR3 for accurate, repeatable linear motion
- Sorting: -10-15 micron sorting for consistent dimensional accuracy and interchangeability
Key Features and Benefits
- High Load Capacity: With a basic dynamic load rating of 68000 N, the unit reliably supports substantial loads while maintaining smooth linear movement
- Compact, Low-Profile Design: The 19 mm height and 27 mm width make this unit ideal for installations where spatial efficiency is critical
- GR3 Precision Grade: Delivers accurate and repeatable linear guidance suitable for high-precision positioning tasks
- Micron-Sorted Accuracy: The -10-15 micron sorting ensures consistent dimensional accuracy and dependable interchangeability across units
Ideal Applications
The RUS19105-KS-GR3/-10-15 is particularly well suited for:
- Precision machine tool positioning and linear movement applications
- Industrial automation systems requiring accurate, repeatable guidance
- Compact machinery installations where low-profile mounting is essential
- High-load linear motion systems demanding rigidity and stability
- Measuring and inspection equipment where dimensional accuracy is critical
