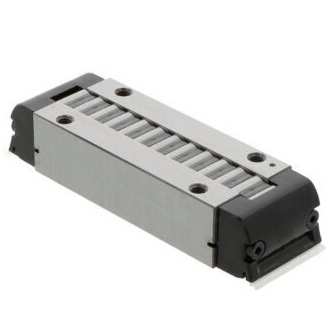

RUS19069-KS-GR3/-10-15 INA Linear Recirculating Bearing Unit
Also Try
Bosch Rexroth Carriages
Hiwin Carriages
THK Carriages
NSK Carriages
Ewellix Carriages
Angular Contact Bearings
Miniature Bearings
Buy Now
Product Specification
Ball-/Roller rows
Single row
Brand
INA
Material
Steel, plastic
Seal
No seal
Tolerance class
G3
Reference
RUS19069-KS-GR3/-10-15
Equivalent to:
RUS19069-KS.GR3/-10-15
Quick Order Code
BB-704566
Product Description
The RUS19069-KS-GR3/-10-15 INA Linear Recirculating Bearing Unit is a precision-engineered linear motion component designed for demanding industrial applications requiring smooth, accurate, and reliable linear movement. Featuring a high precision grade, this compact recirculating bearing unit delivers dependable guidance performance combined with the robust engineering quality expected from INA products.
Key Specifications:
- Outer Diameter (D): 27 mm (1.063 inch)
- Height (H): 19 mm
- Total Length (L tot): 82 mm
- Width (b): 27 mm
- Weight: 0.19 kg
- Basic Dynamic Load Rating (C): 42,000
- Sealing: No seal
- Precision Grade: GR3 for reliable, accurate performance
- Sorting: -10-15 micron sorting for tightly controlled dimensional accuracy
Key Features:
- Precision Grade (GR3): Delivers accurate linear guidance suitable for applications where dimensional accuracy is important
- Micron Sorting (-10-15): Precisely sorted tolerances for enhanced repeatability and interchangeability
- Compact Design: Space-efficient dimensions ideal for installations with limited mounting space
Typical Applications:
The RUS19069-KS-GR3/-10-15 is well-suited for:
- Industrial automation and precision positioning systems
- Machine tool guideways requiring accurate linear guidance
- Material handling systems demanding reliable and repeatable linear motion
- Space-constrained installations requiring a compact, high-precision bearing solution
- Click here for data sheet
