Bearings
Linear Bearings & Shaft
Linear Carriages
INA Carriages
Quick Code: BB-704607

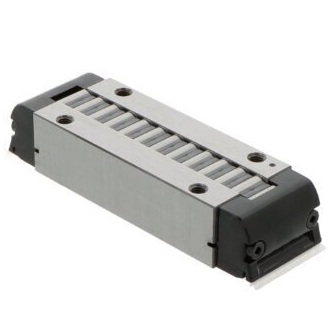

PR14061-GR1/0-5 INA Linear Plain Bearing Unit
The PR14061-GR1/0-5 INA Linear Plain Bearing Unit is a precision-engineered linear motion component designed for demanding industrial applications requiring smooth, accurate linear movement and dependable performance. Manufactured to exacting standards with a high precision grade, this bearing unit delivers reliable guidance and substantial load-bearing capability for a wide range of mechanical systems and automation equipment.
Key Features:
- Precision Grade: GR1 for accurate, consistent linear guidance in precision applications
- Sorting: /0-5 micron sorting for tight dimensional consistency and reliable interchangeability
- Sealing: No seal configuration for applications where sealing is not required or is provided externally
- Dynamic Load Capacity (C): 107,000 for robust performance under continuous operating loads
- Static Load Capacity (C₀): 86,000 for reliable support under stationary and shock loading conditions
- Reference: PR14061-GR1/0-5
- Brand: INA
Weight and Dimensions:
- Outer Diameter (D): 38.1 mm (1.5 inch)
- Width (B): 28.66 mm (1.125 inch)
- Height (H): 28.6 mm
- Width (b): 38.1 mm
- Weight: 0.65 kg
Typical Applications:
The PR14061-GR1/0-5 is well-suited for industrial automation systems, precision positioning equipment, material handling systems, and general machinery where smooth linear movement, high load capacity, and consistent dimensional accuracy are essential. Its high dynamic and static load ratings make it particularly valuable in applications subject to both continuous operating loads and stationary or shock loading. The precision GR1 grade and 0-5 micron sorting ensure reliable, repeatable performance in demanding linear motion assemblies.
