Quick Code: BB-508976

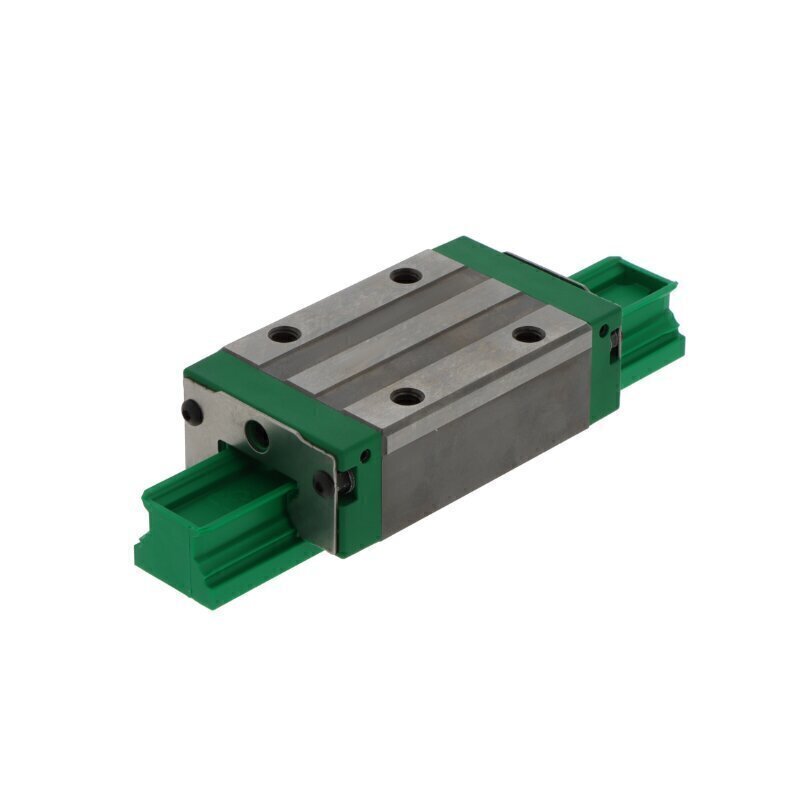

KWVE45-B-SN-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
45 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Slimline and low design
Reference
KWVE45BSNV1G3
Additional Reference:
10099625
Quick Order Code
BB-508976
Product Description
The KWVE45-B-SN-V1-G3 INA Carriage is a precision linear motion component engineered for applications requiring smooth, accurate linear movement with space-constrained requirements. This block carriage combines reliable performance with a compact footprint, making it ideal for demanding industrial automation systems.
Key Specifications:
- Design: Block carriage with slimline and low design for space-limited installations
- Series: 45 series
- Rolling Elements: Ball type with four-row configuration
- Material: Steel with plastic components for durability and reduced weight
- Preload: Light preload for balanced load capacity and smooth operation
- Ball Chain: Without ball chain
- Lubrication: Relubricatable for extended service life and maintenance flexibility
- Sealing: End seals and sealing strips for protection against contamination
- Tolerance Class: G3 for reliable precision performance
- Operating Temperature Range: -10 to +80°C
Typical Applications:
This carriage is well-suited for:
- Compact automation equipment with height or width constraints
- Light to moderate load industrial machinery
- Precision positioning systems in manufacturing
- Laboratory and testing equipment requiring smooth linear motion
As a stainless steel and steel alternative within our extensive INA carriage portfolio, this component delivers the precision engineering and reliability expected from INA products in a configuration optimized for space-conscious applications.
