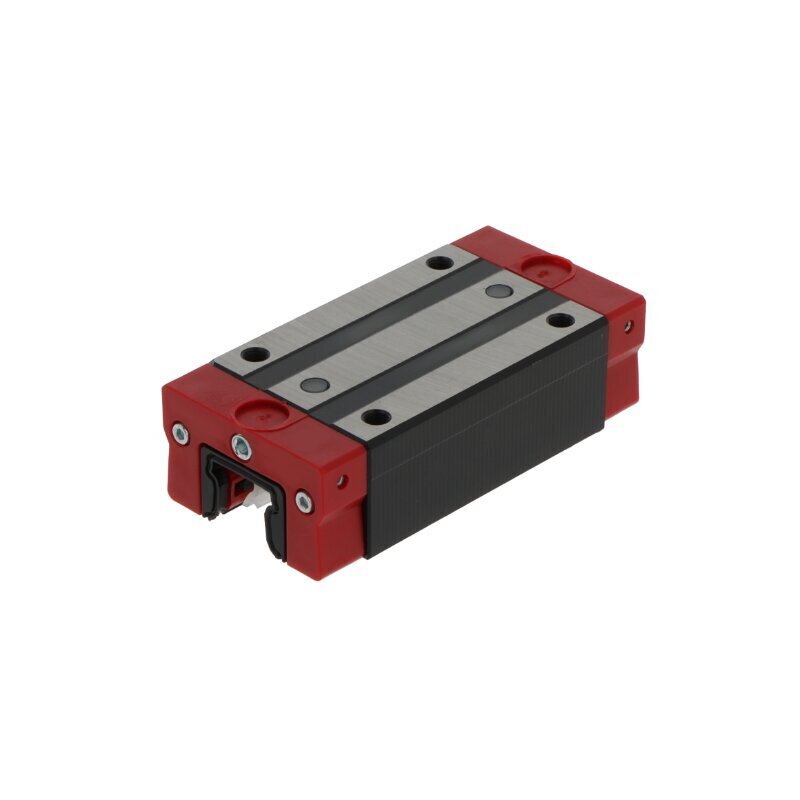

KWVE45-B-HL-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
45 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
High and long design
Reference
KWVE45BHLV1G3
Additional Reference:
10099754
Quick Order Code
BB-509029
Product Description
The KWVE45-B-HL-V1-G3 is a precision-engineered linear carriage from INA's 45 series, specifically designed for demanding industrial applications requiring smooth, accurate linear motion. This block carriage combines robust engineering with versatile performance characteristics to deliver reliable linear guidance across a wide range of operational scenarios.
Key Specifications:
- Design: Block carriage configuration for compact and stable linear guidance
- Rolling Elements: Ball type with four-row configuration for excellent load distribution and smooth motion
- Preload: Light preload setting for optimized performance and reduced friction
- Material Composition: Steel and plastic components for durability and lightweight handling
- Tolerance Class: G3 for precision linear motion applications
- Version: High and long design providing extended travel capabilities and enhanced rigidity
- Lubrication: Relubricatable design allowing for extended service life through maintenance intervals
- Sealing: End seals and sealing strips for protection against contamination and environmental ingress
- Operating Temperature Range: -10 to +80°C for reliable performance in varied industrial environments
- Ball Chain: Without ball chain for streamlined operation
Ideal Applications:
The KWVE45-B-HL-V1-G3 is well-suited for industrial automation, manufacturing equipment, material handling systems, and precision assembly machines where high-load capacity combined with extended travel distances and dependable linear motion are essential requirements.
