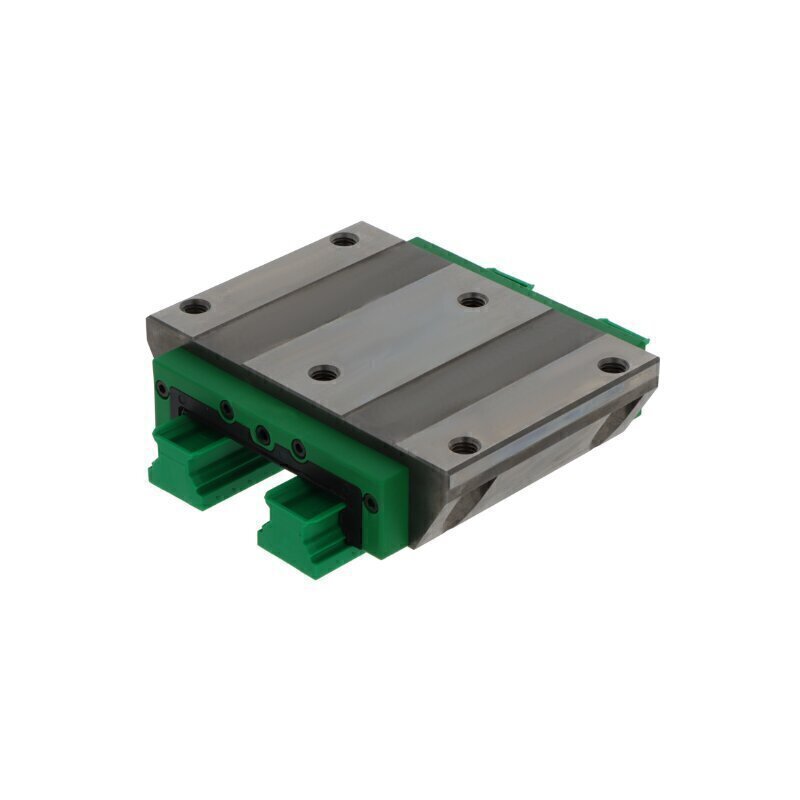

KWVE35-WL-V1-G3 INA Carriage
The KWVE35-WL-V1-G3 INA Carriage is a precision-engineered linear motion component designed for demanding industrial applications requiring smooth, accurate linear movement with extended travel capabilities. This flange carriage combines robust engineering with versatile functionality to deliver reliable performance in challenging environments.
Key Specifications:
- Series: 35 series with wide and long design configuration
- Rolling Elements: Four-row ball bearing system without ball chain
- Preload: Light preload for balanced load capacity and smooth operation
- Material Construction: Steel frame with plastic components for durability and corrosion resistance
- Tolerance Class: G3 for precise dimensional accuracy
- Sealing: End seals and sealing strips to protect against contamination
- Lubrication: Relubricatable design for extended service life and maintenance flexibility
- Operating Temperature Range: -10 to +80°C
Ideal Applications:
This carriage is well-suited for industrial automation systems, manufacturing equipment, CNC machinery, and linear motion systems where extended stroke lengths and moderate to heavy loads are required. The wide and long design provides excellent stability and load distribution, making it particularly effective in applications requiring predictable, repeatable linear movement across extended distances.
The relubricatable maintenance option ensures minimal downtime and cost-effective long-term operation in production environments.
