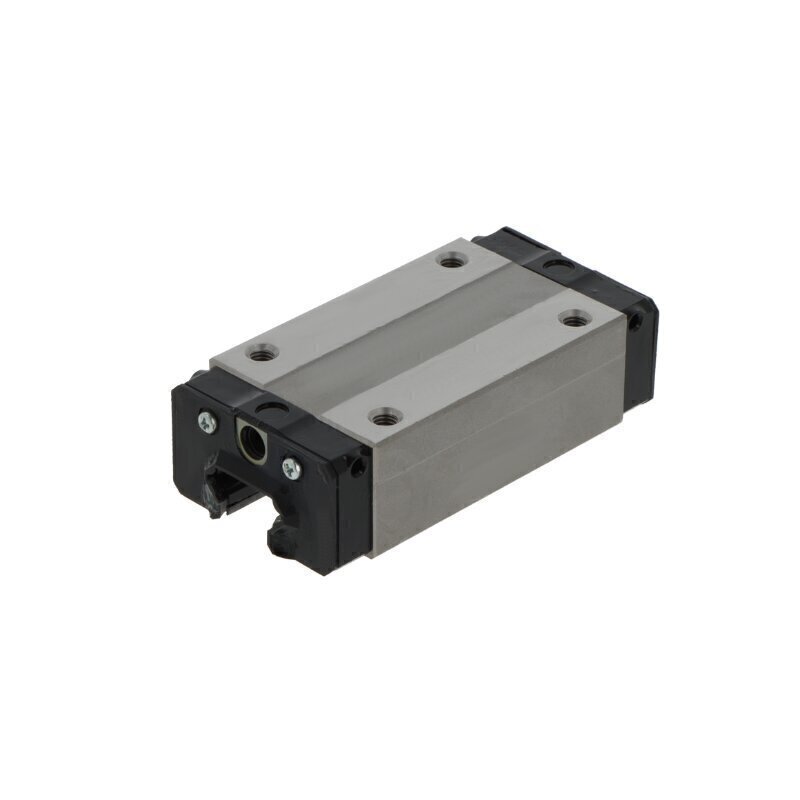

KWVE35-B-SL-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
35 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Small and long design
Reference
KWVE35BSLV1G3
Additional Reference:
10099748
Quick Order Code
BB-509024
Product Description
The KWVE35-B-SL-V1-G3 INA Carriage is a precision linear motion component engineered for applications demanding reliable, smooth operation with moderate to high load capacities. This block carriage combines advanced design features with robust construction to deliver consistent performance in demanding industrial environments.
Key Specifications:
- Series: 35 series
- Design: Block carriage with small and long design
- Rolling Elements: Ball type, four-row configuration
- Preload: Light preload for reduced friction and smooth motion
- Material: Steel with plastic components for durability and corrosion resistance
- Tolerance Class: G3 for precise dimensional accuracy
- Sealing: End seals and sealing strips to protect against contamination
- Lubrication: Relubricatable for extended service life and maintenance flexibility
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
Applications:
This carriage is ideal for:
- CNC machinery and automated positioning systems
- Industrial assembly and handling equipment
- Precision transfer systems requiring stable linear motion
- Medium to high-load applications in manufacturing environments
- Systems requiring relubricatable configurations for ongoing maintenance access
The combination of four-row ball elements with light preload ensures excellent load distribution while maintaining smooth, accurate linear movement, making this carriage a reliable choice for demanding industrial applications.
