Quick Code: BB-509183

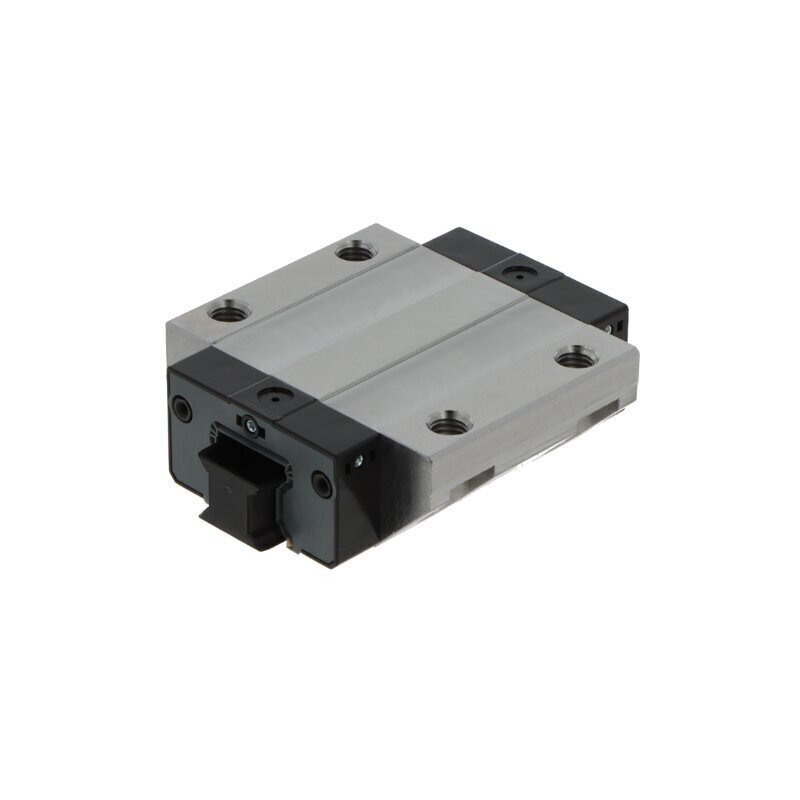

KWVE35-B-N-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Flange carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
35 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Low design
Reference
KWVE35BNV1G3
Additional Reference:
10100343
Quick Order Code
BB-509183
Product Description
The KWVE35-B-N-V1-G3 INA Carriage is a precision linear motion component engineered for applications requiring reliable, smooth guided movement. This flange carriage combines robust construction with versatile performance characteristics, making it suitable for industrial automation, machinery positioning systems, and equipment requiring compact linear guidance solutions.
Key Specifications:
- Design: Flange carriage configuration for flexible mounting options
- Series: INA 35 series – mid-range load capacity
- Rolling Elements: Ball type with four-row configuration for optimal load distribution
- Preload: Light preload for reduced friction while maintaining precision
- Version: Low design profile for space-constrained applications
- Material: Steel and plastic construction for durability and corrosion resistance
- Tolerance Class: G3 – precise dimensional tolerance for demanding applications
- Lubrication: Relubricatable design for extended service life and maintenance flexibility
- Sealing: End seals and sealing strips protect against contamination and extend operational longevity
- Operating Temperature: -10 to +80°C for reliable performance across varied industrial environments
- Ball Chain: Without ball chain configuration
Applications:
Ideal for CNC machinery, transfer systems, automation equipment, and any application requiring smooth, accurate linear motion with minimal maintenance requirements in temperature-controlled industrial environments.
