Quick Code: BB-509022

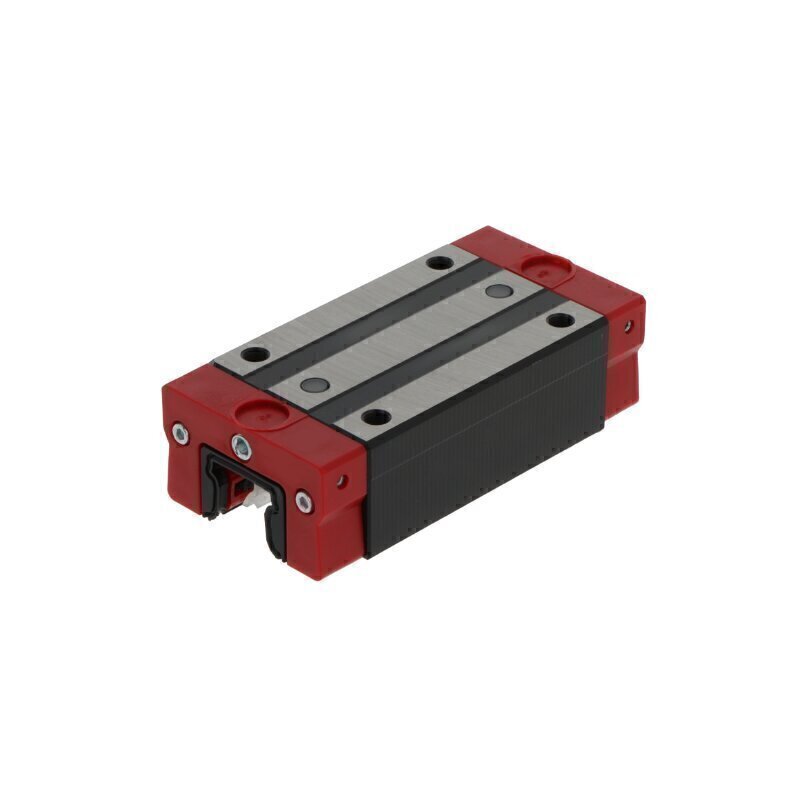

KWVE35-B-HL-V1-G3 INA Carriage
The KWVE35-B-HL-V1-G3 INA Carriage is a precision linear motion component engineered for demanding industrial applications requiring smooth, accurate linear movement with extended reach capabilities.
Product Specifications:
- Series: 35 series
- Design: Block carriage with high and long design
- Rolling Elements: Ball type in four-row configuration
- Material: Steel with plastic components
- Preload: Light preload for optimized performance
- Tolerance Class: G3
- Sealing: End seals and sealing strips for enhanced protection
- Lubrication: Relubricatable for extended maintenance intervals
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
Key Features:
This carriage combines the robust engineering of INA's proven linear motion technology with a high and long design variant, making it ideal for applications requiring extended travel distances and reliable performance. The four-row ball configuration delivers smooth linear motion with consistent accuracy, while the light preload setting provides an optimal balance between load capacity and operational smoothness.
Applications:
The KWVE35-B-HL-V1-G3 is well-suited for:
- Machine tools and CNC equipment
- Automation systems with extended stroke requirements
- Industrial positioning systems
- Assembly line applications
- Material handling equipment
The relubricatable design ensures long-term reliability with straightforward maintenance, while comprehensive end seals protect against contamination in demanding industrial environments.
