Quick Code: BB-509038

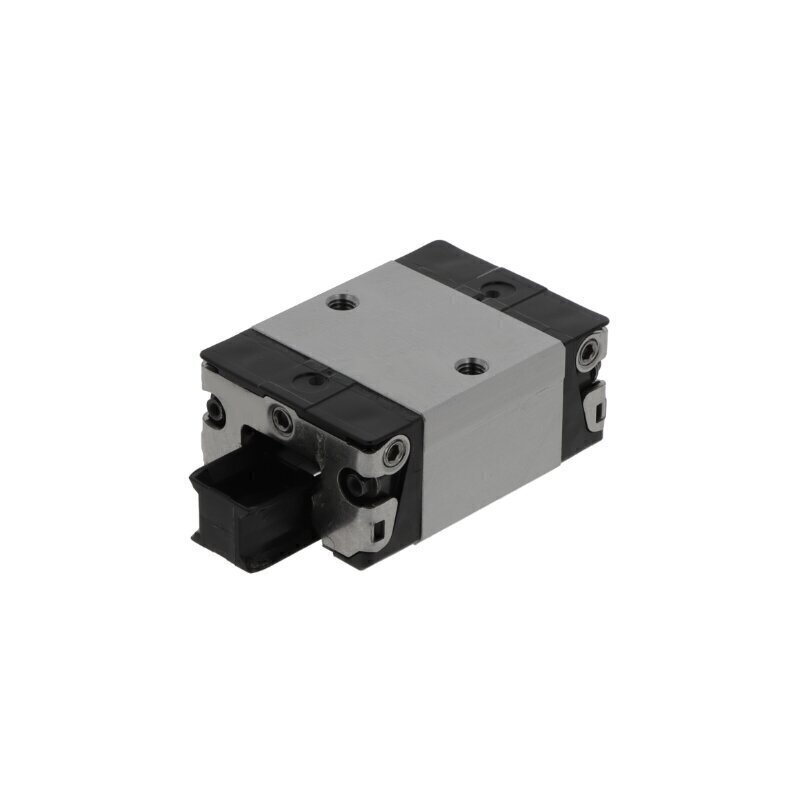

KWVE35-B-ESC-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
35 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Upgraded short, slim type
Reference
KWVE35BESCV1G3
Additional Reference:
10099764
Quick Order Code
BB-509038
Product Description
The KWVE35-B-ESC-V1-G3 INA Carriage is a precision linear motion component engineered for compact, space-constrained industrial applications. This upgraded short, slim-type block carriage combines high performance with a minimalist design footprint, making it ideal for equipment where installation space is at a premium.
Key Specifications:
- Series: 35 series
- Design: Block carriage (upgraded short, slim type)
- Rolling Elements: Ball type, four-row configuration
- Preload: Light preload for smooth, accurate motion
- Material: Steel with plastic components for optimized performance
- Tolerance Class: G3
- Sealing: End seals and sealing strips for enhanced protection
- Lubrication: Relubricatable for extended service life and maintenance flexibility
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
Ideal Applications:
The KWVE35-B-ESC-V1-G3 is perfectly suited for:
- Compact automation equipment and machinery
- Medical and laboratory instrumentation requiring precise linear positioning
- Printing and packaging machinery with space constraints
- Industrial robotic systems with limited envelope dimensions
- Test and measurement equipment requiring reliable, repeatable motion
This carriage delivers the precision and reliability expected from INA linear motion solutions while offering the compact form factor required by modern, space-efficient system designs.
