Quick Code: BB-509312

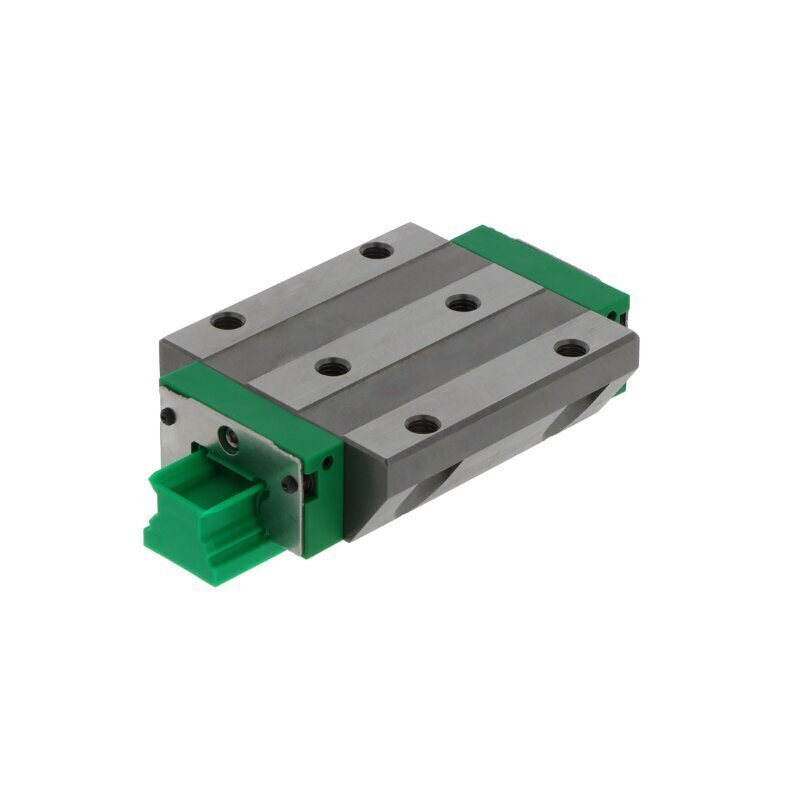

KWVE30-B-NL-V2-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Flange carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Medium preload
Seal
End Seals and Sealing Strips
Series
30 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Low and long design
Reference
KWVE30BNLV2G3
Additional Reference:
10101747
Quick Order Code
BB-509312
Product Description
The KWVE30-B-NL-V2-G3 INA Carriage is a precision linear motion component engineered for applications demanding smooth, accurate linear movement with reliable performance in extended, low-profile configurations. This flange carriage combines robust four-row ball construction with medium preload technology, making it ideal for industrial automation, machinery, and positioning systems where space efficiency and consistent load distribution are essential.
Key Specifications:
- Design Type: Flange carriage with low and long design configuration
- Series: 30 series
- Rolling Elements: Ball type, four-row configuration
- Preload: Medium preload for optimal load capacity and reduced play
- Tolerance Class: G3 for precise linear motion requirements
- Material Composition: Steel and plastic components for durability and reliable performance
- Lubrication: Relubricatable for extended service life and manageable maintenance intervals
- Sealing: End seals and sealing strips for enhanced protection against contaminants
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
- Version: Low and long design for specialized mounting applications
Ideal Applications:
The KWVE30-B-NL-V2-G3 is well-suited for:
- Industrial automation and machinery requiring precise linear positioning with extended travel
- Assembly line equipment and material handling systems with space constraints
- Applications requiring low-profile installation in compact or overhead mounting configurations
- Moderate to heavy-load applications within standard temperature ranges
- Systems benefiting from medium preload for balanced performance and minimal backlash
- Equipment requiring periodic lubrication and maintenance protocols
As an INA precision carriage, this component delivers reliable performance in applications demanding consistent accuracy, durability, and versatile mounting flexibility in extended, low-profile designs.
Reference: KWVE30BNLV2G3 | Brand: INA
