Quick Code: BB-509016

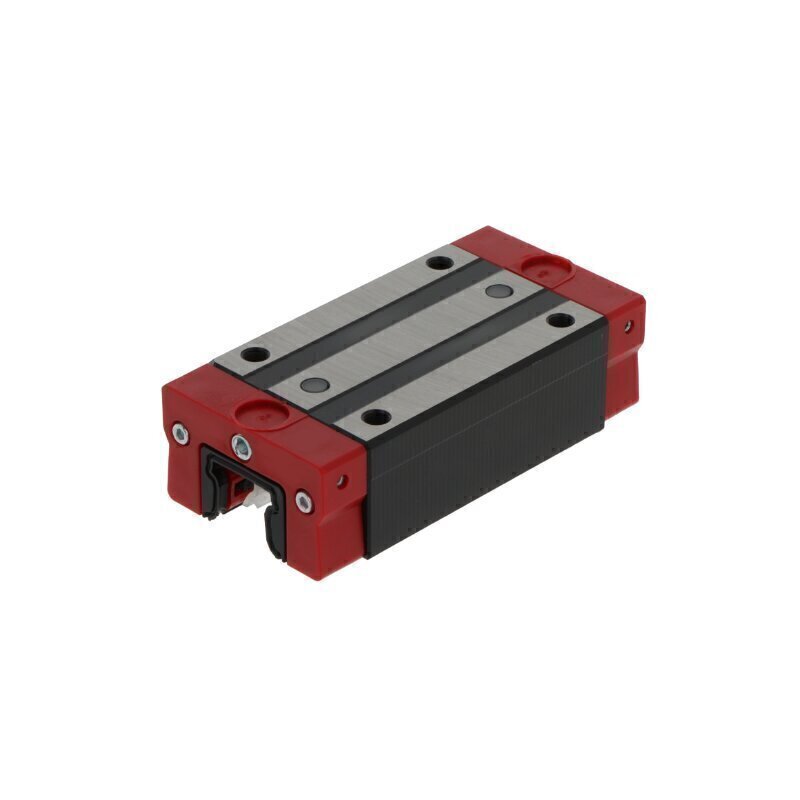

KWVE30-B-HL-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
30 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
High and long design
Reference
KWVE30BHLV1G3
Additional Reference:
10099739
Quick Order Code
BB-509016
Product Description
The KWVE30-B-HL-V1-G3 INA Carriage is a precision-engineered linear motion component from INA's 30 series, designed to deliver smooth, accurate linear movement in demanding industrial applications. This block carriage combines reliability with versatility, making it ideal for machine tools, automation equipment, and production machinery requiring consistent performance.
Key Specifications:
- Design: Block carriage format for versatile installation options
- Rolling Elements: Ball type with four-row configuration for optimal load distribution
- Version: High and long design providing extended stroke capability and increased load capacity
- Preload: Light preload for balanced performance between smooth operation and minimal friction
- Material: Steel body with plastic components for durability and corrosion resistance
- Tolerance Class: G3 precision grade ensuring high repeatability and accuracy
- Sealing: End seals and sealing strips protecting against contamination and extending service life
- Lubrication: Relubricatable design allowing for extended maintenance intervals and reduced downtime
- Operating Temperature: -10 to +80°C, suitable for diverse industrial environments
- Ball Chain: Without ball chain for streamlined design
Ideal Applications:
This carriage is particularly suited for applications requiring extended travel distances, higher load capacities, and precision positioning in temperature-controlled environments. Its relubricatable maintenance system makes it an excellent choice for installations where regular maintenance access is practical and desired.
