Quick Code: BB-509166

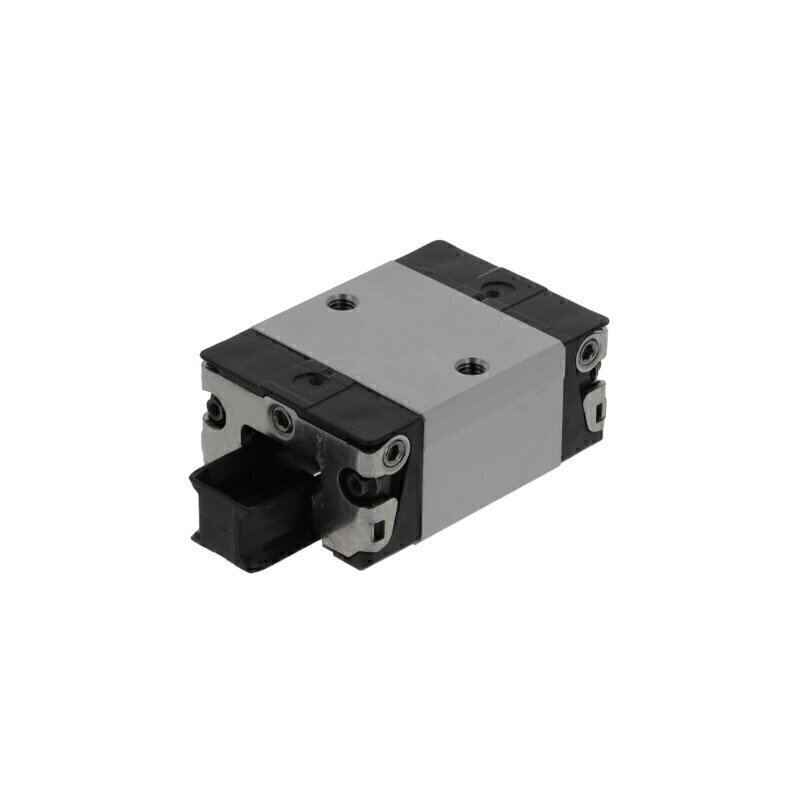

KWVE30-B-ESC-V1-G3 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Block carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Light preload
Seal
End Seals and Sealing Strips
Series
30 series
Temperature range
-10 to +80 °C
Tolerance class
G3
Type of rolling elements
Balls
Version
Upgraded short, slim type
Reference
KWVE30BESCV1G3
Additional Reference:
10100124
Quick Order Code
BB-509166
Product Description
The KWVE30-B-ESC-V1-G3 INA Carriage is a precision-engineered linear motion component designed for demanding industrial applications requiring smooth, accurate linear movement. This four-row ball carriage combines compact design with reliable performance, making it an ideal solution for space-constrained applications.
Key Specifications:
- Design: Block carriage with upgraded short, slim type configuration
- Series: 30 series
- Rolling Elements: Ball type (four-row configuration)
- Preload: Light preload for optimized performance
- Material: Steel with plastic components for durability and corrosion resistance
- Lubrication: Relubricatable design for extended service life
- Sealing: End seals and sealing strips for protection against contaminants
- Tolerance Class: G3
- Operating Temperature Range: -10 to +80°C
- Ball Chain: Without ball chain
Ideal Applications:
The KWVE30-B-ESC-V1-G3 is particularly well-suited for:
- Compact linear motion systems with limited installation space
- Industrial automation equipment requiring smooth reciprocating motion
- Machine tools and precision positioning systems
- Applications requiring light to moderate load capacities
- Systems operating in moderate temperature environments
As a relubricatable carriage with end seals and sealing strips, this component provides reliable long-term performance while maintaining ease of maintenance for industrial operations.
