Quick Code: BB-509300

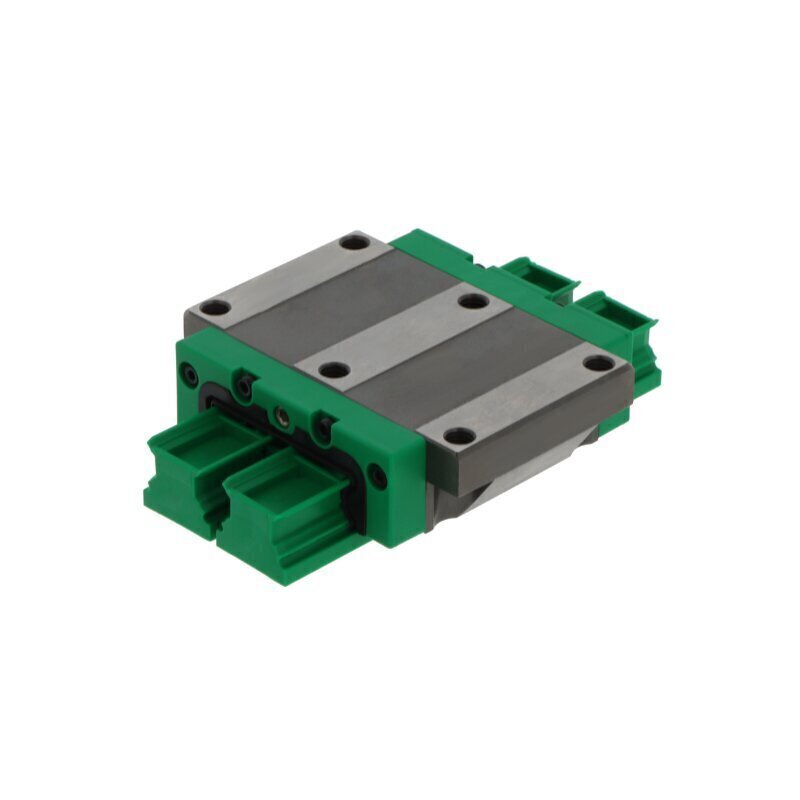

KWVE20-W-V2-G2 INA Carriage
Also Try
Bosch Rexroth Carriages
THK Carriages
Hiwin Carriages
NSK Carriages
Ewellix Carriages
Buy Now
Product Specification
Ball chain
Without ball chain
Ball-/Roller rows
Four Row
Brand
INA
Design
Flange carriage
Lubrication & Maintenance
Relubricatable
Material
Steel, Plastic
Preload
Medium preload
Seal
End Seals and Sealing Strips
Series
20 series
Temperature range
-10 to +80 °C
Tolerance class
G2
Type of rolling elements
Balls
Version
Wide design
Reference
KWVE20WV2G2
Additional Reference:
10101667
Quick Order Code
BB-509300
Product Description
The KWVE20-W-V2-G2 INA Carriage is a precision-engineered linear motion component from INA's 20 series, specifically designed for industrial applications requiring smooth, accurate linear movement with reliable performance and excellent load distribution capabilities.
Key Specifications:
- Design: Flange carriage configuration with wide design for enhanced stability
- Series: 20 series for compact to mid-range load applications
- Rolling Elements: Ball type in four-row configuration for optimized load distribution
- Preload: Medium preload for enhanced rigidity and reduced play during operation
- Material: Steel with plastic components for durability, lightweight performance, and corrosion resistance
- Tolerance Class: G2 for high-precision industrial applications
- Sealing: End seals and sealing strips for reliable protection against contaminants
- Lubrication: Relubricatable design for extended service life and maintenance flexibility
- Operating Temperature: -10 to +80°C
- Ball Chain: Without ball chain configuration
- Version: Wide design for increased mounting surface area and stability
Applications:
The KWVE20-W-V2-G2 is ideal for:
- Industrial automation and precision manufacturing equipment
- Material handling and packaging systems requiring reliable linear motion
- Machinery where medium preload rigidity and accuracy are essential
- Applications benefiting from the wide design configuration for enhanced stability and load distribution
- Systems requiring periodic maintenance and relubrication in moderate temperature environments
- General industrial precision applications demanding consistent performance
With its four-row ball configuration, medium preload, and wide design structure, this flange carriage delivers dependable precision and stability for applications where smooth linear motion, load capacity, and accessibility for maintenance are critical to operational success.
