Quick Code: BB-525133

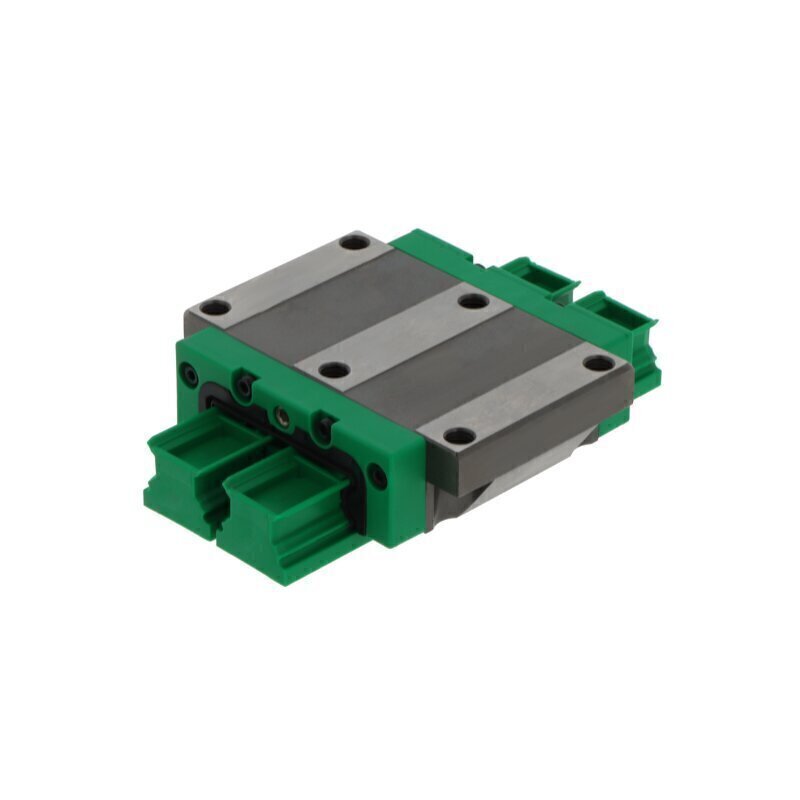

KWVE20-W-UG-V1-G3 INA Carriage
The KWVE20-W-UG-V1-G3 INA Carriage is a precision linear motion component engineered for applications requiring reliable, smooth linear movement with compact yet capable performance characteristics. This flange carriage from INA's 20 series combines advanced engineering with practical design features, making it an excellent choice for systems demanding consistent precision with a wide design footprint for enhanced stability and load distribution.
Key Specifications:
- Brand: INA – trusted leader in linear motion technology
- Design: Flange carriage – optimized for direct mounting to stationary components
- Series: 20 series – mid-range load-bearing capacity with versatile performance
- Rolling Elements: Balls in four-row configuration for smooth, precise linear motion and excellent load distribution
- Preload: Light preload – optimized for smooth operation while maintaining precision
- Material: Steel and plastic construction – combines durability with lightweight design benefits
- Tolerance Class: G3 – high precision rating suitable for demanding positioning requirements
- Version: Wide design – enhanced stability and load capacity for specialized applications
- Sealing: End seals and sealing strips provide comprehensive contamination protection for reliable long-term performance
- Lubrication: Relubricatable design – allows for scheduled maintenance and extended operational life in demanding conditions
- Operating Temperature Range: -10 to +80°C – suitable for diverse industrial environments
- Ball Chain: Without ball chain configuration – streamlined design for flexible installation
Applications:
The KWVE20-W-UG-V1-G3 is ideal for:
- Precision industrial automation equipment
- Positioning systems requiring medium-range load capacity
- Material handling and conveyor systems
- Packaging and processing equipment
- Manufacturing and assembly applications requiring consistent linear motion performance
- Systems requiring a wider carriage profile for enhanced stability and load distribution
- Industrial machinery operating in moderate temperature environments
With its relubricatable design, sealed construction, and wide profile, this carriage delivers reliable performance while maintaining precision across demanding operational conditions. As part of our extensive stockist inventory of over 290 INA linear carriages, the KWVE20-W-UG-V1-G3 provides the durability and reliability you expect from INA's proven linear bearing technology.
